As a seasoned supplier of zirconium pure sheets, I often encounter inquiries from customers regarding the bendability of these materials. This question is crucial as it directly impacts the applicability of zirconium pure sheets in various industries, including aerospace, chemical processing, and nuclear power. In this blog, I'll delve into the factors that influence the bendability of zirconium pure sheets and provide insights based on my extensive experience in the field.
Understanding Zirconium Pure Sheets
Zirconium is a highly corrosion - resistant metal, known for its excellent mechanical properties and biocompatibility. Zirconium pure sheets are made from high - purity zirconium and are used in applications where corrosion resistance, strength, and durability are required. The purity of these sheets can vary, with higher purity levels often resulting in better performance in specific environments.
Factors Affecting Bendability
1. Purity and Composition
The purity of zirconium in the sheet plays a significant role in its bendability. Impurities can act as stress concentrators, reducing the ductility of the material and making it more prone to cracking during bending. For example, even small amounts of certain elements like oxygen, nitrogen, or carbon can harden the zirconium and decrease its ability to deform plastically. As a supplier, we ensure that our zirconium pure sheets meet strict purity standards to enhance their bendability.
2. Grain Structure
The grain size and orientation in the zirconium sheet also affect its bendability. A fine - grained structure generally provides better formability compared to a coarse - grained one. During the manufacturing process, we can control the grain structure through heat treatment and rolling operations. By optimizing these processes, we can produce zirconium pure sheets with a more uniform and fine - grained structure, which are more suitable for bending operations.
3. Sheet Thickness
Thicker zirconium pure sheets are generally more difficult to bend than thinner ones. As the thickness increases, the amount of force required to deform the material also increases, and the risk of cracking becomes higher. When customers need to bend zirconium sheets, we often recommend choosing an appropriate thickness based on their specific bending requirements. For instance, if a tight bend radius is needed, a thinner sheet would be a better choice.
4. Bending Method
The method used for bending the zirconium pure sheet is crucial. There are several bending techniques available, such as press braking, roll bending, and stretch bending. Each method has its own advantages and limitations. Press braking is suitable for making sharp bends, while roll bending is better for creating curved shapes. The choice of bending method should be based on the desired shape, the thickness of the sheet, and the available equipment.
Can Zirconium Pure Sheet be Bent?
The answer is yes, zirconium pure sheets can be bent, but it depends on the factors mentioned above. With the right combination of purity, grain structure, thickness, and bending method, it is possible to achieve successful bending without causing significant damage to the sheet.
In some cases, pre - bending heat treatment can be used to improve the ductility of the zirconium sheet. This involves heating the sheet to a specific temperature and then cooling it at a controlled rate. However, it is important to note that heat treatment should be carefully controlled to avoid over - heating, which can lead to changes in the material's properties.
Applications of Bent Zirconium Pure Sheets
Bent zirconium pure sheets have a wide range of applications. In the chemical industry, they are used to fabricate pipes, tanks, and other equipment that need to withstand corrosive chemicals. The ability to bend the sheets allows for the creation of custom - shaped components that fit specific process requirements.
In the aerospace industry, bent zirconium sheets can be used for structural components due to their high strength - to - weight ratio and corrosion resistance. They can also be used in the nuclear power industry for fuel cladding and other critical components.
Related Products

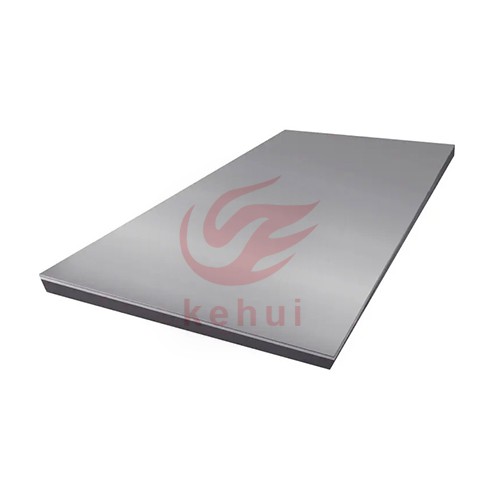

If you are interested in other zirconium products, we also offer Zirconium Alloy Plate, Zirconium R60702 Plate, and B551 Zirconium Plate. These products have different properties and are suitable for various applications.
Conclusion
In conclusion, zirconium pure sheets can be bent, but careful consideration of factors such as purity, grain structure, thickness, and bending method is necessary. As a supplier, we are committed to providing high - quality zirconium pure sheets that can be easily bent to meet our customers' needs. Whether you are in the chemical, aerospace, or nuclear industry, our products can offer the performance and reliability you require.
If you have any questions about the bendability of our zirconium pure sheets or would like to discuss your specific requirements, please feel free to contact us. We look forward to working with you to find the best solutions for your projects.
References
- ASM Handbook Volume 2: Properties and Selection: Nonferrous Alloys and Special - Purpose Materials.
- "Zirconium and Zirconium Alloys" by the American Society for Metals.
