As a seasoned supplier of titanium bars, I've witnessed firsthand the transformative power of heat treatment in enhancing the properties of these remarkable materials. Titanium bars are renowned for their exceptional strength-to-weight ratio, corrosion resistance, and biocompatibility, making them indispensable in a wide range of industries, from aerospace and automotive to medical and marine applications. However, to fully unlock the potential of titanium bars, proper heat treatment is essential. In this blog post, I'll share my insights on how to heat-treat a titanium bar, covering everything from the basics of heat treatment to the specific processes and considerations involved.
Understanding the Basics of Heat Treatment
Heat treatment is a controlled process of heating and cooling a metal to alter its physical and mechanical properties. In the case of titanium bars, heat treatment can be used to improve hardness, strength, ductility, and toughness, as well as to relieve internal stresses and enhance corrosion resistance. The key to successful heat treatment lies in understanding the phase transformations that occur in titanium at different temperatures and the effects of these transformations on the material's properties.
Titanium exists in two main crystal structures: alpha (α) and beta (β). At room temperature, titanium is in the alpha phase, which is characterized by a hexagonal close-packed (HCP) crystal structure. As the temperature increases, titanium undergoes a phase transformation to the beta phase, which has a body-centered cubic (BCC) crystal structure. The temperature at which this transformation occurs is known as the beta transus temperature, which varies depending on the alloy composition.
Types of Heat Treatment for Titanium Bars
There are several types of heat treatment processes that can be used for titanium bars, each with its own specific purpose and benefits. The most common types of heat treatment for titanium bars include annealing, solution treatment, aging, and stress relieving.
Annealing
Annealing is a heat treatment process that involves heating the titanium bar to a specific temperature and holding it there for a certain period of time, followed by slow cooling. The purpose of annealing is to relieve internal stresses, improve ductility, and refine the grain structure of the material. There are two main types of annealing for titanium bars: full annealing and partial annealing.
- Full Annealing: Full annealing involves heating the titanium bar to a temperature above the beta transus temperature and holding it there for a sufficient time to allow for complete transformation to the beta phase. The bar is then cooled slowly to room temperature, typically in a furnace or by burying it in an insulating material. Full annealing results in a soft, ductile material with a fine grain structure.
- Partial Annealing: Partial annealing involves heating the titanium bar to a temperature below the beta transus temperature and holding it there for a specific time to relieve internal stresses and improve ductility. The bar is then cooled at a controlled rate to room temperature. Partial annealing is often used for titanium bars that require a balance between strength and ductility.
Solution Treatment
Solution treatment, also known as solution annealing, is a heat treatment process that involves heating the titanium bar to a temperature above the beta transus temperature and holding it there for a sufficient time to dissolve any precipitates or second-phase particles in the material. The bar is then quenched rapidly in water or oil to retain the dissolved elements in a supersaturated solid solution. Solution treatment is typically followed by aging to precipitate the dissolved elements and improve the strength and hardness of the material.
Aging
Aging, also known as precipitation hardening, is a heat treatment process that involves heating the solution-treated titanium bar to a specific temperature and holding it there for a certain period of time to allow for the precipitation of fine particles of a second phase in the material. The precipitation of these particles strengthens the material by hindering the movement of dislocations, which are responsible for plastic deformation. Aging can be performed at room temperature (natural aging) or at an elevated temperature (artificial aging).
Stress Relieving
Stress relieving is a heat treatment process that involves heating the titanium bar to a temperature below the beta transus temperature and holding it there for a specific time to relieve internal stresses that have been introduced during machining, welding, or other manufacturing processes. The bar is then cooled slowly to room temperature to prevent the formation of new internal stresses. Stress relieving is often used to improve the dimensional stability and reduce the risk of cracking or distortion in the titanium bar.
Heat Treatment Process for Titanium Bars
The heat treatment process for titanium bars typically involves the following steps:
Preparation
Before heat treatment, the titanium bar should be cleaned thoroughly to remove any dirt, oil, or other contaminants that could affect the quality of the heat treatment. The bar should also be inspected for any surface defects or cracks that could propagate during the heat treatment process.
Heating
The titanium bar is heated to the desired temperature in a furnace or other heating device. The heating rate should be controlled to prevent thermal shock and ensure uniform heating throughout the bar. The temperature should be monitored carefully using a thermocouple or other temperature sensor to ensure that it reaches the desired level and is maintained within the specified range.
Soaking
Once the titanium bar reaches the desired temperature, it is held at that temperature for a specific period of time to allow for the desired phase transformations to occur. The soaking time depends on the size and shape of the bar, as well as the type of heat treatment being performed.
Cooling
After soaking, the titanium bar is cooled at a controlled rate to room temperature. The cooling rate should be carefully controlled to achieve the desired properties in the material. For example, rapid cooling (quenching) is typically used for solution treatment to retain the dissolved elements in a supersaturated solid solution, while slow cooling is used for annealing to relieve internal stresses and improve ductility.
Post-Treatment
After cooling, the titanium bar may be subjected to additional post-treatment processes, such as machining, grinding, or surface finishing, to achieve the desired final dimensions and surface quality. The bar should also be inspected again to ensure that it meets the specified requirements and standards.
Considerations for Heat Treating Titanium Bars
When heat treating titanium bars, there are several important considerations that should be taken into account to ensure the quality and performance of the material. These considerations include:
Alloy Composition
The alloy composition of the titanium bar has a significant impact on its heat treatment behavior and properties. Different alloying elements can affect the beta transus temperature, the phase transformations that occur during heat treatment, and the resulting mechanical properties of the material. Therefore, it is important to select the appropriate alloy composition for the specific application and heat treatment process.
Heating and Cooling Rates
The heating and cooling rates during heat treatment can have a significant impact on the microstructure and properties of the titanium bar. Rapid heating and cooling rates can cause thermal shock and result in the formation of cracks or other defects in the material. Therefore, it is important to control the heating and cooling rates carefully to ensure uniform heating and cooling throughout the bar.
Furnace Atmosphere
The furnace atmosphere during heat treatment can also affect the quality and performance of the titanium bar. Titanium is highly reactive with oxygen, nitrogen, and hydrogen at elevated temperatures, which can result in the formation of surface oxides, nitrides, or hydrides that can degrade the mechanical properties of the material. Therefore, it is important to use a controlled atmosphere furnace or other heating device that can provide a protective atmosphere, such as argon or helium, to prevent oxidation and other reactions during heat treatment.
Quenching Media
The choice of quenching media can also have a significant impact on the microstructure and properties of the titanium bar. Different quenching media, such as water, oil, or air, have different cooling rates and can result in different levels of hardness and toughness in the material. Therefore, it is important to select the appropriate quenching media based on the specific application and heat treatment process.
Conclusion
Heat treatment is a critical process for enhancing the properties of titanium bars and making them suitable for a wide range of applications. By understanding the basics of heat treatment, the different types of heat treatment processes available, and the important considerations involved, you can ensure that your titanium bars are heat-treated properly to achieve the desired properties and performance.

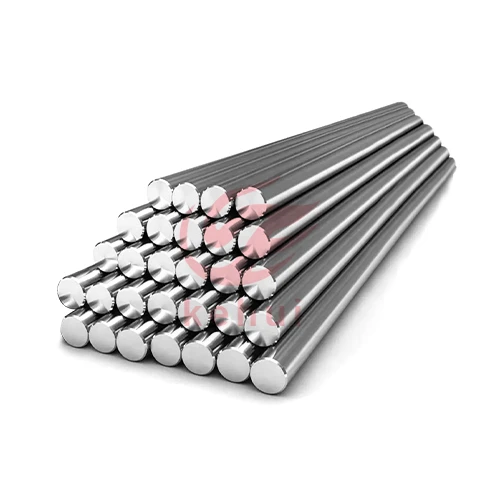

As a leading supplier of titanium bars, we offer a wide range of high-quality Gr2 Pure Titanium Rod, Top Titanium Round Bar, and Gr5 Titanium Bars that are heat-treated to meet the highest standards of quality and performance. If you have any questions or need further information about our products or heat treatment services, please don't hesitate to contact us. We look forward to working with you to meet your titanium bar needs.
