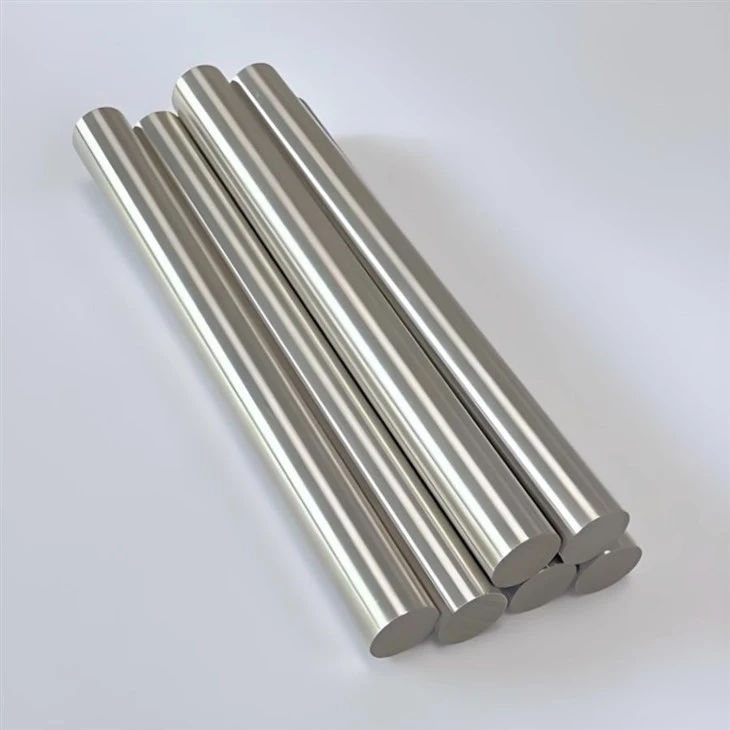

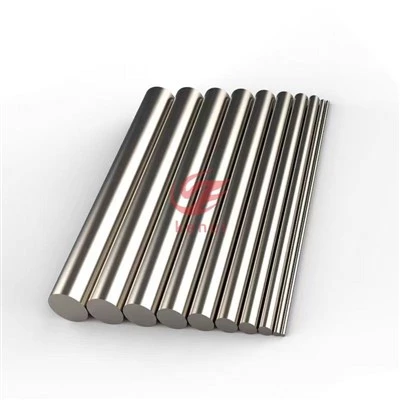

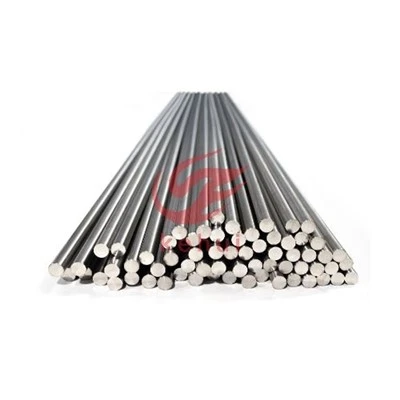

ASTM F136 Ti6Al4V Medical Titanium Alloy Rods
Name:Medical Titanium Alloy Rods
Grade:GR1,GR2,GR3,GR4,GR5
Brand:KEHUI
Standard：ASTM F136,ASTM F67-13
MOQ: 1 kg or 1 piece
Description
Products Description
1, titanium as an emerging material in China and the world's pharmaceutical industry, surgical instruments, implants and other areas of use has been decades of history, and has achieved great success.

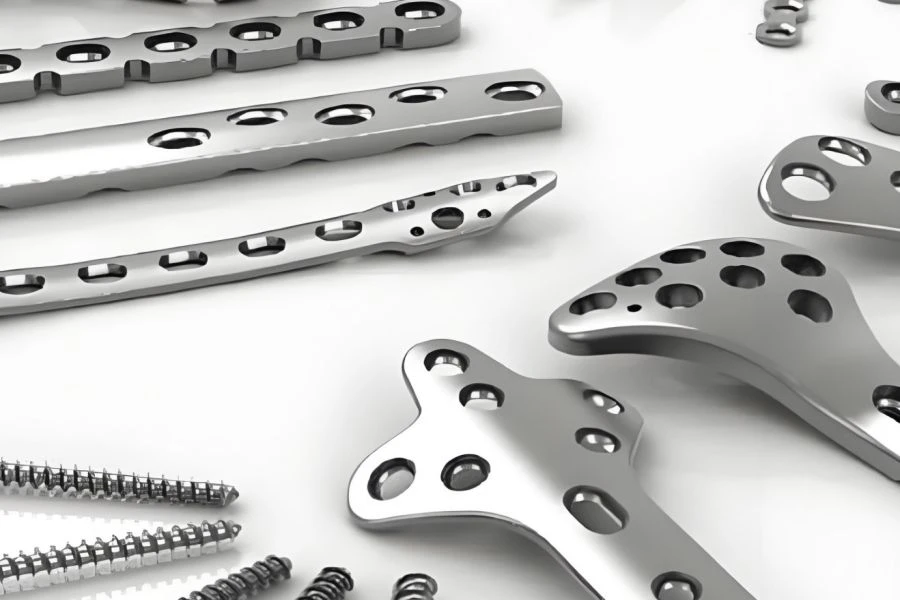

2, the human body should be traumatic injuries, tumors caused by bone, joint damage, the use of titanium and titanium alloy can be manufactured artificial joints, bone plates and screws are now widely used in clinical practice. Also used for hip (including femoral head), knee, elbow, metacarpophalangeal joints, interphalangeal joints, mandible, artificial vertebrae (spinal orthosis), pacemaker shells, artificial heart (heart valves), artificial dental implants, as well as titanium mesh in the skull and other aspects of plastic surgery.
Cementless Femoral Stem

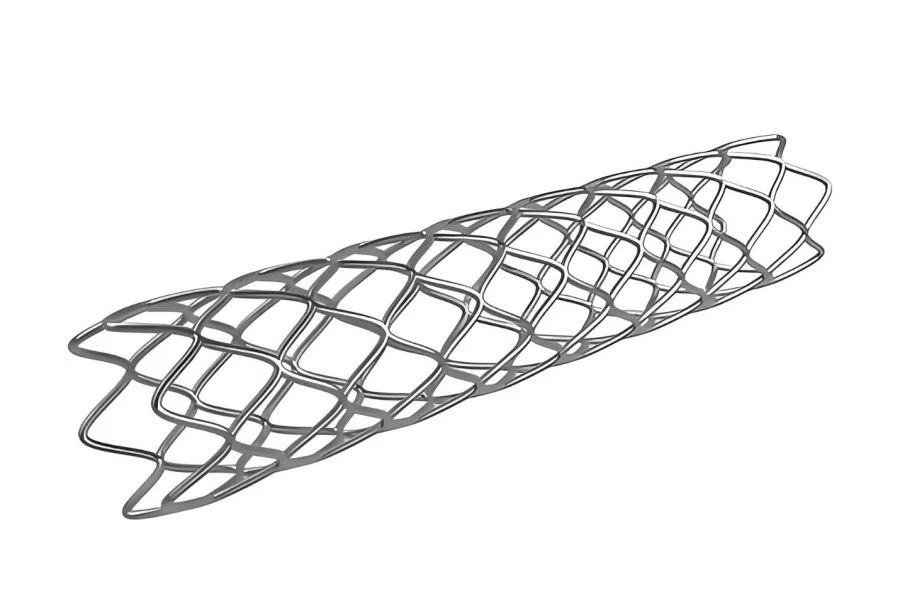

Titanium Heart Stent
Titanium K-wire
ASTM standard materials for medical titanium are listed below
| No. | Standard No. | Standard Name |
|
1 |
ASTM F67-13 |
Standard Specification for Unalloyed Titanium, for Surgical Implant Applications |
|
2 |
ASTM F136-13 |
Standard Specif i cation for Wrought Titanium-6Aluminum-4Vanadium ELI (Extra LowInterstitial) Alloy for Surgical Implant Applications |
|
3 |
ASTM F620-15 |
Standard Specification for Alpha Plus Beta Titanium Alloy Forgings for Surgical Implants Scope |
|
4 |
ASTM F1295-11 |
Standard Specif i cation for Wrought Titanium-6Aluminum-7Niobium Alloy for Surgical Implant Applications |
|
5 |
ASTM F1472-14 |
Standard Specif i cation for Wrought Titanium-6Aluminum-4Vanadium Alloy for SurgicalImplant Applications |
|
6 |
ASTM F1580-12 |
Standard specification for titanium and titanium-6aluminum-4vanadium alloy powders for coatings of surgical implants |
|
7 |
ASTM F1713-08(R13) |
Standard Specification for Wrought Titanium-13Niobium-13Zirconium Alloy for SurgicalImplant Applications |
|
8 |
ASTM F1813-13 |
Standard Specif i cation for Wrought Titanium-12Molybdenum-6Zirconium-2Iron Alloy forSurgical Implant |
|
9 |
ASTM F2066-13 |
Standard Specif i cation for Wrought Titanium-15 Molybdenum Alloy for Surgical ImplantApplications |
|
10 |
ASTM F2146-13 |
Standard Specification for Wrought Titanium-3Aluminum-2.5Vanadium Alloy Seamless Tubing for Surgical Implant Applications |
ASTM F136-13 Tensile Requirements
| Scope of specifications |
Tensile Requirements |
|||||||
|
Rm/MPa |
Rp0.2/MPa |
Aa50mm或A/% |
Z/% |
|||||
|
L |
LT |
ST |
L |
LT |
ST |
|||
|
﹤4.75 |
860 |
795 |
10 |
－ |
－ |
－ |
－ |
－ |
|
4.75~﹤44.45 |
860 |
795 |
10 |
－ |
－ |
25 |
－ |
－ |
|
44.45~﹤63.5 |
825 |
760 |
8 |
－ |
－ |
20 |
－ |
－ |
|
63.5~101.60 |
825 |
760 |
8 |
8 |
8 |
15 |
15 |
15 |
ASTM F67-06 Tensile Requirements
|
Grade |
Tensile Requirements | |||
|
Rm/MPa |
Rp0.2/MPa |
A/% |
Z/% |
|
|
GR1 |
≧240 |
≧170 |
≧24 |
≧30 |
|
GR2 |
≧345 |
≧275 |
≧20 |
≧30 |
|
GR3 |
≧450 |
≧380 |
≧18 |
≧30 |
|
GR4 |
≧550 |
≧483 |
≧15 |
≧25 |
