ASTM B265 Titanium And Titanium Alloy Sheet

Name: China ASTM B265 Titanium And Titanium Alloy Sheet Manufacturers Suppliers Factory
Brand: KEHUI
SKU: 244309160

Name:Titanium Sheet
Grade:GR1,GR2,GR3,GR4,GR12,GR5
Brand:KEHUI
Standard：ASTM B265,ASTM F136
MOQ: 1 kg or 1 piece

Send Inquiry

Description

Company profile

Baoji Kehui Titanium Industry Co., Ltd. was established in March 2011, and its subsidiary, Baoji Juxinyuan New Materials Co., Ltd., was established in May 2017.

The company has been deeply cultivating titanium metal materials for 15 years, and is a high-tech enterprise focusing on R&D, production and sales of pipes, rods, plates, wires, forgings and various chemical corrosion-resistant equipment of rare and precious metals such as titanium and titanium alloy, zirconium and zirconium alloy, adhering to the collection of scientific research, manufacturing, sales and service as one of the modern new concept.

DJI0213

High Quality

The company has passed the international quality management system certification such as BS EN ISO 9001:2015, EN 9100 : 2018, Iso9001:2015.

Advanced Equipment

The company has advanced production equipment such as VAR vacuum self-consumption melting furnace, 4500T, 6500T fast forging machine and plate, bar and pipe rolling mill.

Professional Team

Our company has professional production, technology, sales and after-sales service team to serve our customers.

Custom Service

Our company provides professional titanium alloy material customization service to meet the different needs of customers, and is committed to reducing material waste, lowering carbon emissions and creating a green circular economy.

Products Description

Standard

ASTM B265 ASTM F136 ASTM F67 AMS 4928

Grade

Gr1,Gr2,Gr3,Gr4,Gr5,Gr7,Gr12,Gr23

Type

Sheet,Plate,Strip

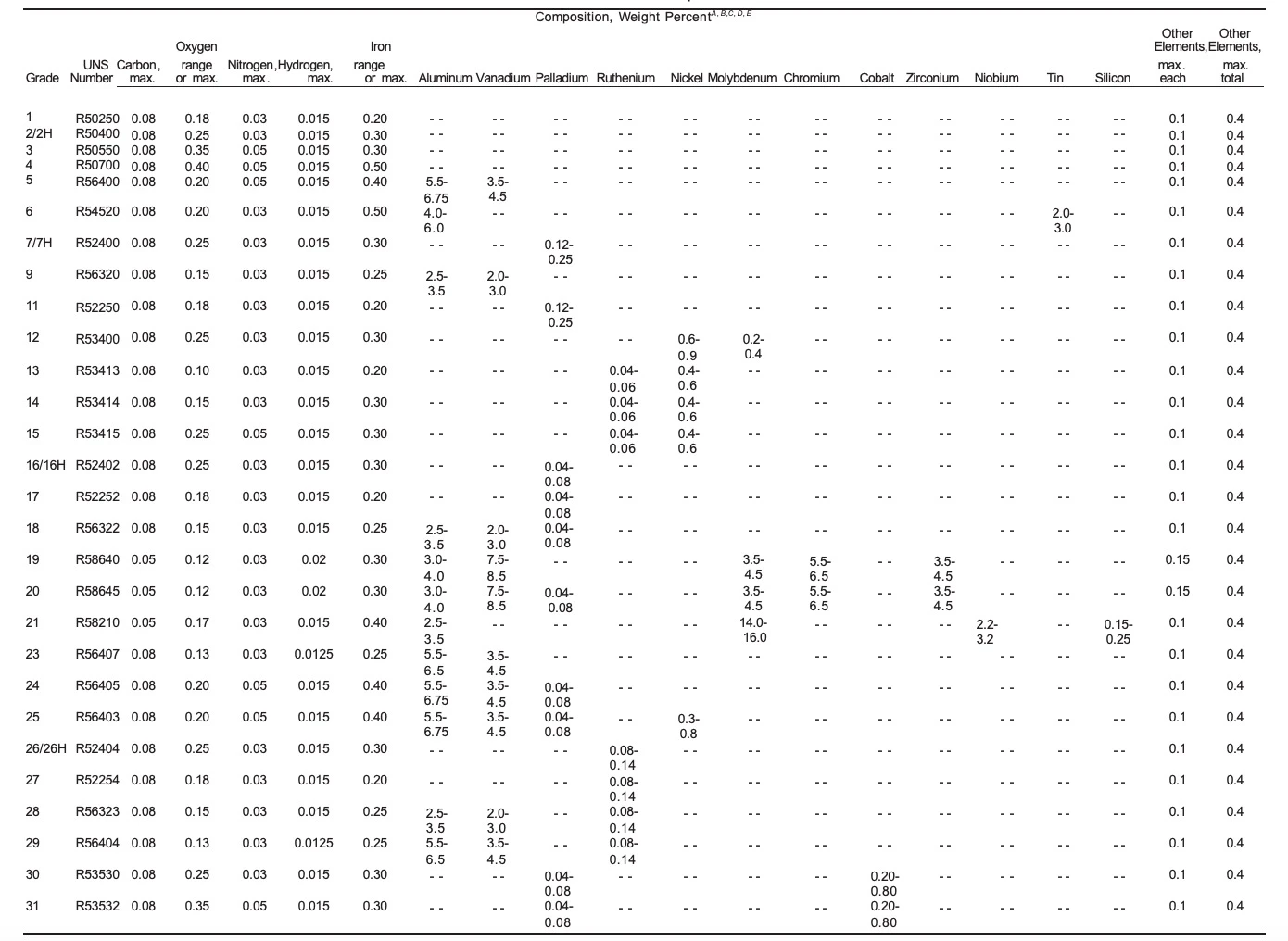

Product Chemical Requirements

product-1390-1016

Tensile Requirements^A

Grade	Tensile Strength, min		Yield Strength, 0.2 % Offset				Elongation in 2 in. or 50 mm,min, %	Bend Test (Radius of Mandrel)B
	ksi	MPa	min		max			Under 0.070 in. (1.8 mm) inThickness	0.070 to 0.187 in. (1.8–4.75 mm) inThickness
	ksi	MPa	ksi	MPa	ksi	MPa		Under 0.070 in. (1.8 mm) inThickness	0.070 to 0.187 in. (1.8–4.75 mm) inThickness
1	35	240	20	138	45	310	24	1.5T	2T
2	50	345	40	275	65	450	20	2T	2.5T
2HC,D	58	400	40	275	65	450	20	2T	2.5T†
3	65	450	55	380	80	550	18	2T	2.5T
4	80	550	70	483	95	655	15	2.5T	3T
5	130	895	120	828	...	...	10E	4.5T	5T
6	120	828	115	793	...	...	10E	4T	4.5T
7	50	345	40	275	65	450	20	2T	2.5T
7HC,D	58	400	40	275	65	450	20	2T	2.5T†
9	90	620	70	483	...	...	15F	2.5T	3T
11	35	240	20	138	45	310	24	1.5T	2T
12	70	483	50	345	...	...	18	2T	2.5T
13	40	275	25	170	...	...	24	1.5T	2T
14	60	410	40	275	...	...	20	2T	2.5T
15	70	483	55	380	...	...	18	2T	2.5T
16	50	345	40	275	65	450	20	2T	2.5T
16HC,D	58	400	40	275	65	450	20	2T	2.5T†
17	35	240	20	138	45	310	24	1.5T	2T
18	90	620	70	483	...	...	15F	2.5T	3T
19G,H	115	793	110	759	...	...	15	3T	3T
20G,H	115	793	110	759	...	...	15	3T	3T
21G,H	115	793	110	759	...	...	15	3T	3T
23	120	828	110	759	...	...	10	4.5T	5T

Product Specification

Product	Grade	Specification(mm)	Standard
Hot Rolled Titanium Strips	Gr1, Gr2, Gr12	T:3.0-12.0* W:800-2000*C, Weight: 3000kg-15000kg	ASTM B265
Hot Rolled Titanium Plates	Gr1,Gr2,Gr3,Gr4,Gr5,Gr12	T:3.0-120.0 W:800-2000 L:2000-12000	ASTM B265
Cold Rolled Titanium Strip	GR1, GR2, Gr5,GR12	T: 0.05-4.75 W: 200-1500C Weight: 100kg-10000kg	ASTM B265
Cold Rolled Titanium Sheet	Gr1, Gr2, Gr5,Gr9,Gr12	T:0.1~2.0W:400~1500 L:1000~3000mm T:2.0~6.0*W:500~1500 xL:1000~3000mm	ASTM B265

Note: We accept customized titanium plates of other special grades.

Our latest Products

Screenshot20240430162058comssandroidugcawemeedit420035478153615

Gr5 δ2.0*1000*2000mm

Screenshot20240430162148comssandroidugcawemeedit419938606232275

Gr1 δ1.0*1250*2000mm

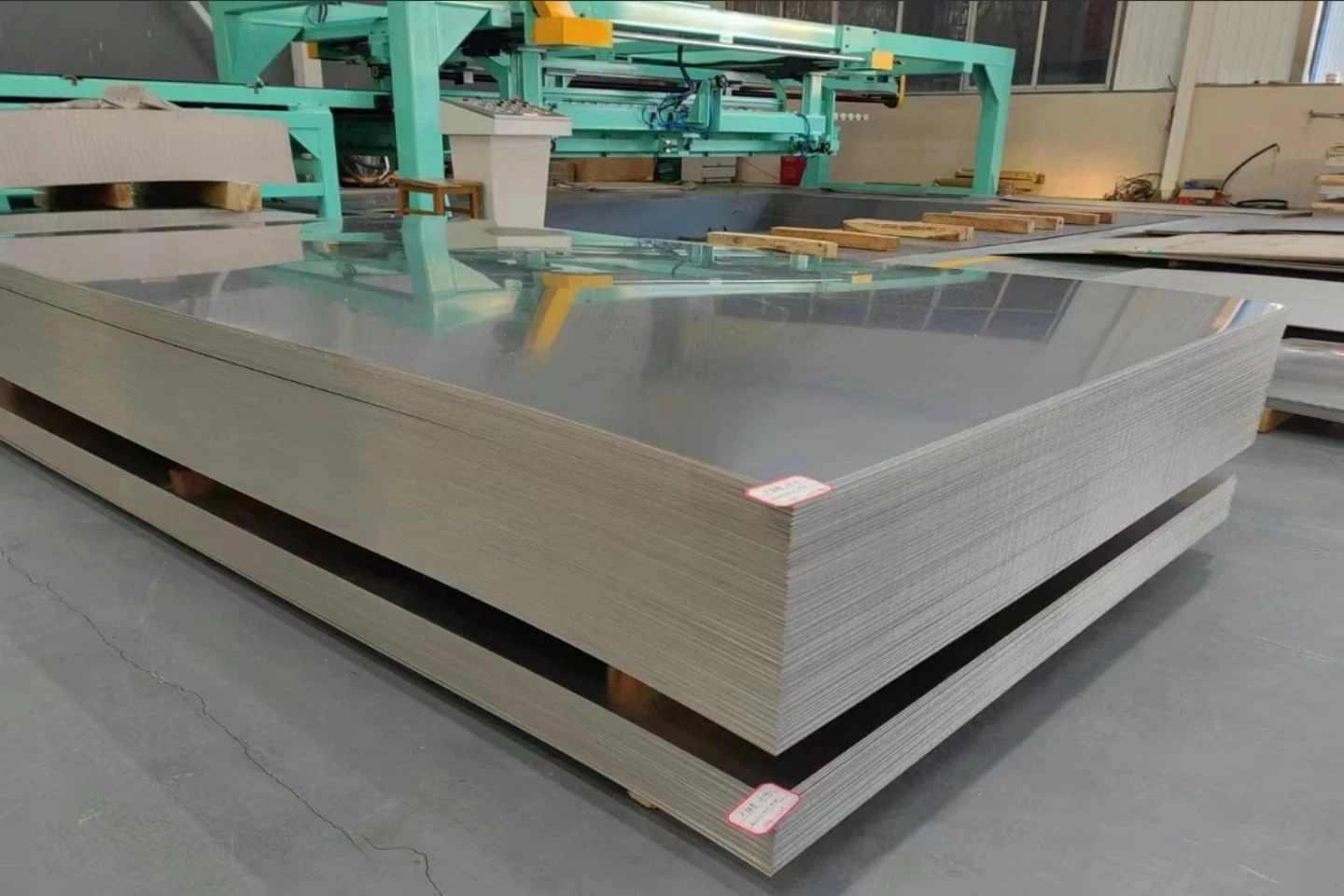

Screenshot20240430162144comssandroidugcawemeedit419949200414565

Gr2 δ2.0*1219*3000mm

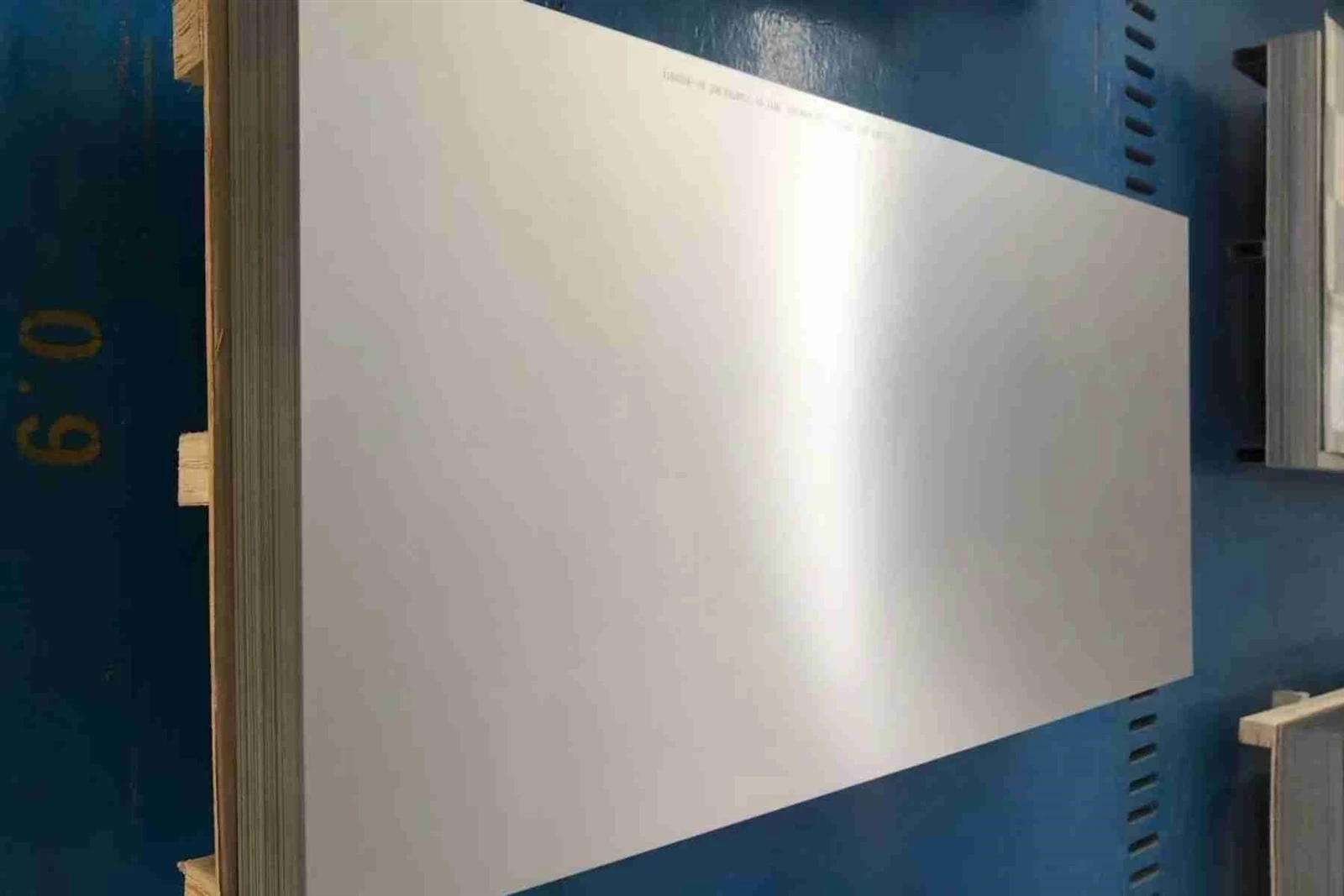

WechatIMG240

Gr2 δ4.0*1500*6000mm

Screenshot20240430162137comssandroidugcawemeedit419959804804147

Gr2 δ16.0*2000*6000mm

IMG20240408093453edit86804606427379

Gr2 δ26.0*1790*4345mm

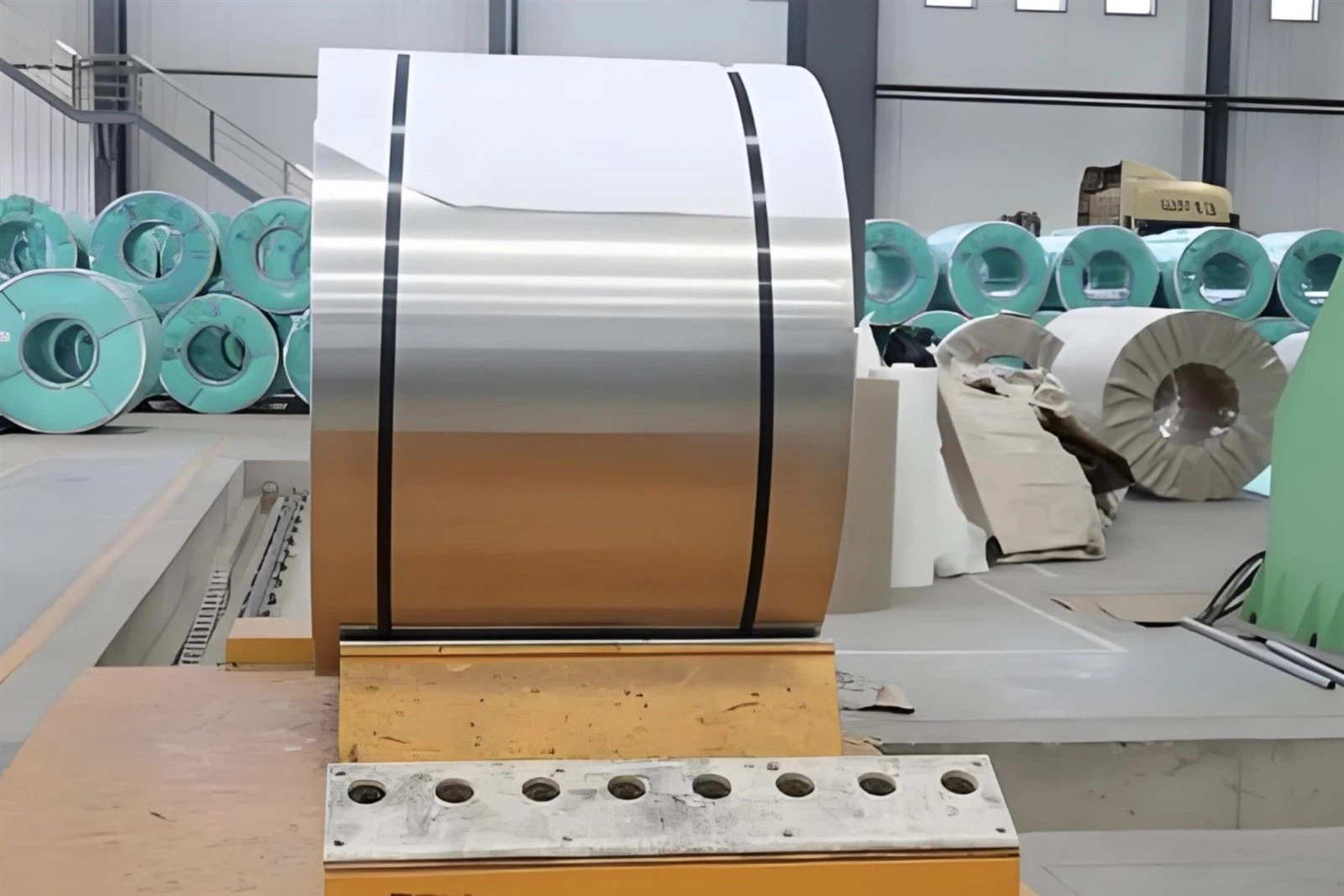

p202404261252577962e

Gr1 Titanium Strip δ0.6*1220*C

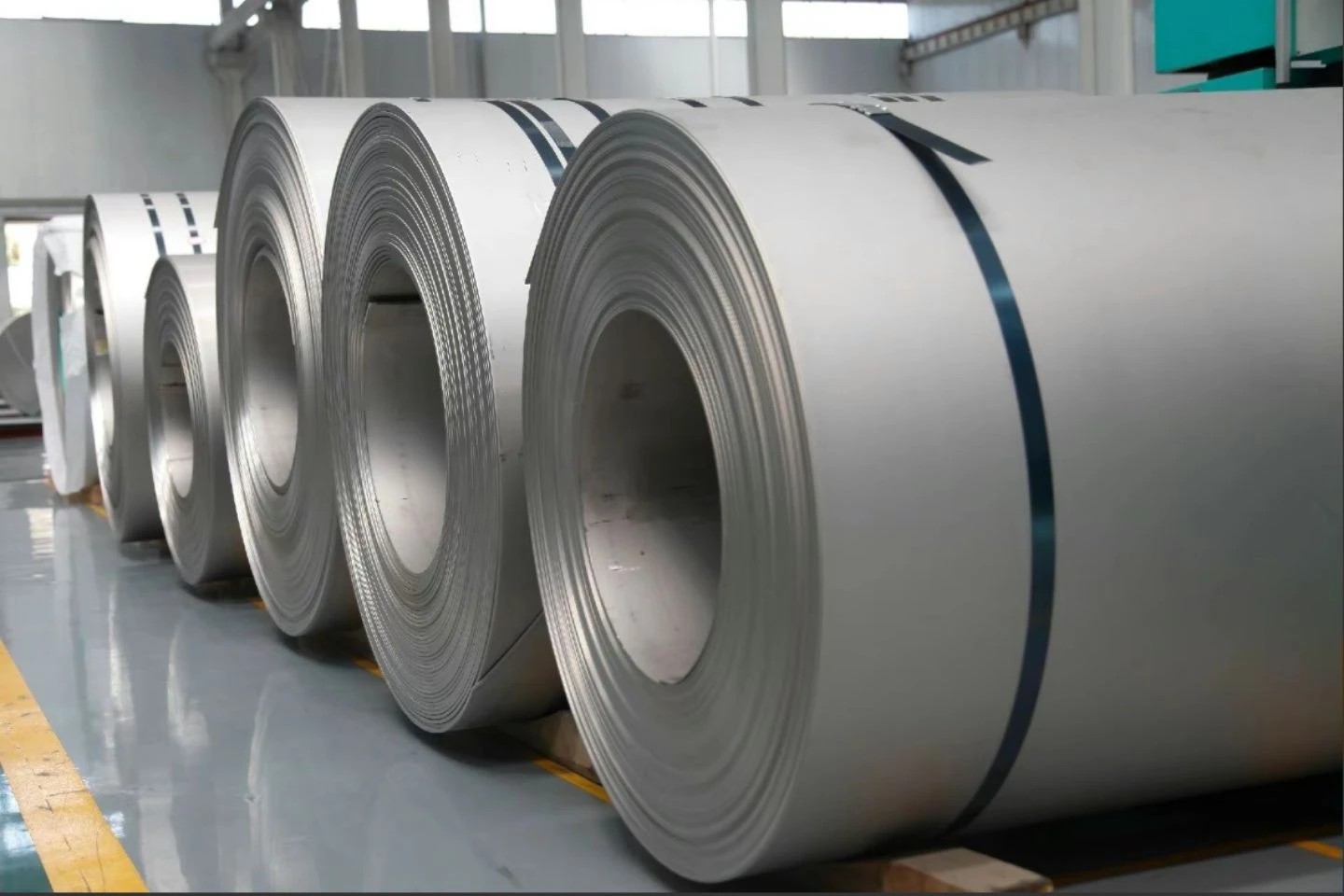

Screenshot20240430162051comssandroidugcawemeedit420062759787985

Gr2 Titanium Strip δ3.0-8.0*1000-1500*C

WechatIMG230

Gr1&Gr2 Titanium Strip δ3.0-8.0*1000-1500*C

p2024042610245589237

Gr5 Titanium Strip δ0.1*125*C

p20240427231320d17e1

Gr1 Titanium Strip δ0.2*200*C

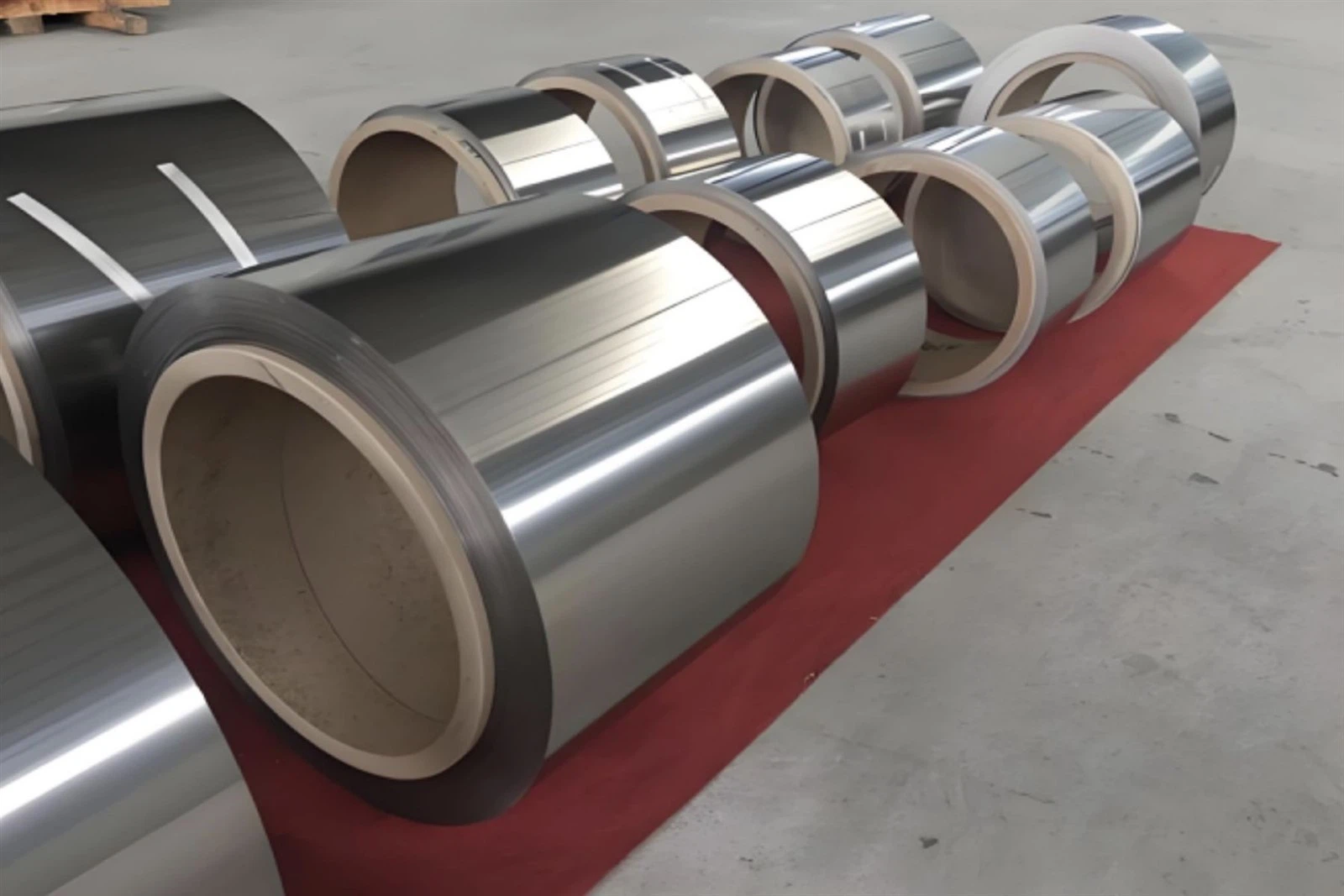

p20240426102640f6429

Gr1 Titanium Strip δ0.3*320*C

Our Certificate

001

Certificate CN048824 EN00

BS EN ISO 9001:2015

EN 9100:2018

ISO 900100

ISO 9001:2015

GLB9001C-2017

Our Partners

Kehui titanium with a good reputation,excellent quality and sound after-sales service to win the world praise,in many domestic and foreign enterprises shine!

211b9aaa654c1f873ff05f122bcf9e94

nimgws126net

201811151008332031

u28433385341058263455fm253fmtautoapp138fPNG

d52c0be753944062b6f5f676178863ea

941f7a2fjw1exb29edkuvj205k05kaa6jpg

1721869732272

nimgws126net

FAQ

Q1: What is the relationship between Kehui and Juxinyuan?

A: Kehui Titanium was founded in March 2011, and after several years of development in 2017, it established a subsidiary, Juxinyuan New Materials.

Q2: What kind of products are you manufacturing?

A2: We are a specialized manufacturer of titanium and titanium alloys, zirconium and zirconium products, with a wide range of products. In addition to plates, we also produce rods, wires, tubes, pipe fittings, forgings and customized products.

Q3:cHow long is your lead time?

A3: We have Gr1,Gr2,Gr5 plates in stock, common specifications can be played immediately, at the same time, we also have nearly 500 tons of various grades of raw materials reserves, according to the number of orders, generally can be completed in 10-30 days of production and delivery.

Q4: How to control quality?

A4: We will carry out strict third party inspection for raw material purchasing, strict quality control and in-process inspection for each production process, UT inspection, dimensional and surface inspection, and chemical composition inspection for finished products before shipment. We can arrange third party inspection if customers need.

Q5: What is the advantage of your product?

A5: Our company is located in China's largest titanium industry base - Baoji, relying on the complete titanium industry chain in Baoji, has formed a complete production process from sponge melting - forging - rolling - machining - inspection - recycling. The process has been controlled, which greatly shortens the period of fake goods.
