ASTM F136 Ti6Al4V Medical Titanium Alloy Sheet Strip Foil
Name:Medical Titanium Alloy Sheet
Grade:GR1,GR2,GR3,GR4,GR5
Brand:KEHUI
Standard：ASTM F136,ASTM F67-13
MOQ: 1 kg or 1 piece
Description
Products Description
The density of titanium is similar to human bone, lightweight, pure titanium biocompatibility, strength of 390 ~ 490 MPa. experiments have proved that titanium compared to cobalt-based alloys and stainless steel fatigue resistance and corrosion resistance is superior, titanium's surface activity is good, the organization of the reaction is slight, and it is easy to react with oxygen to establish a dense oxidation film, titanium's oxidation layer is more stable. Therefore, titanium and titanium alloys have the conditions of biomedical materials, is a more ideal, suitable for implantation, implant materials with development prospects titanium and titanium alloys due to the high specific strength, biocompatibility and corrosion resistance of body fluids and other characteristics are increasingly being emphasized.

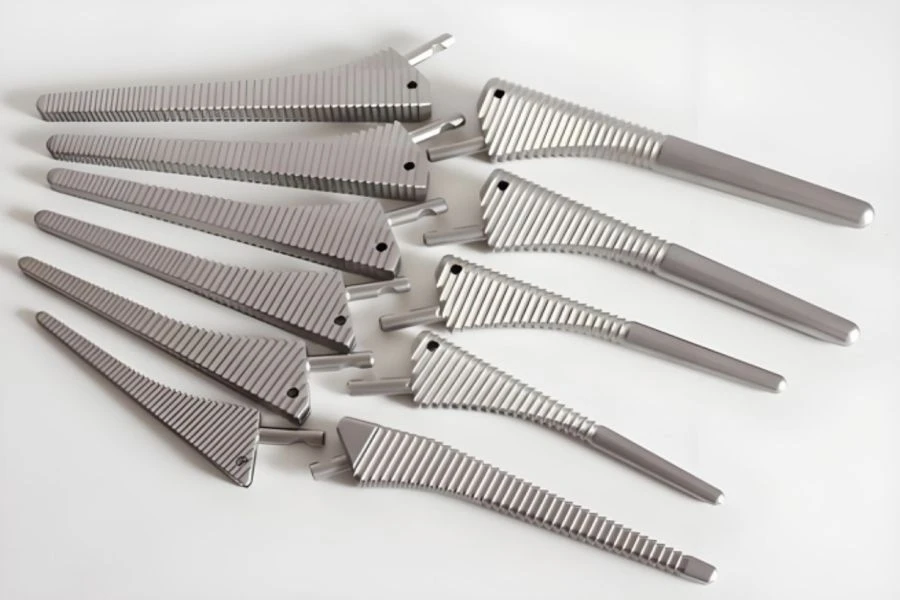

Cementless Femoral Stem

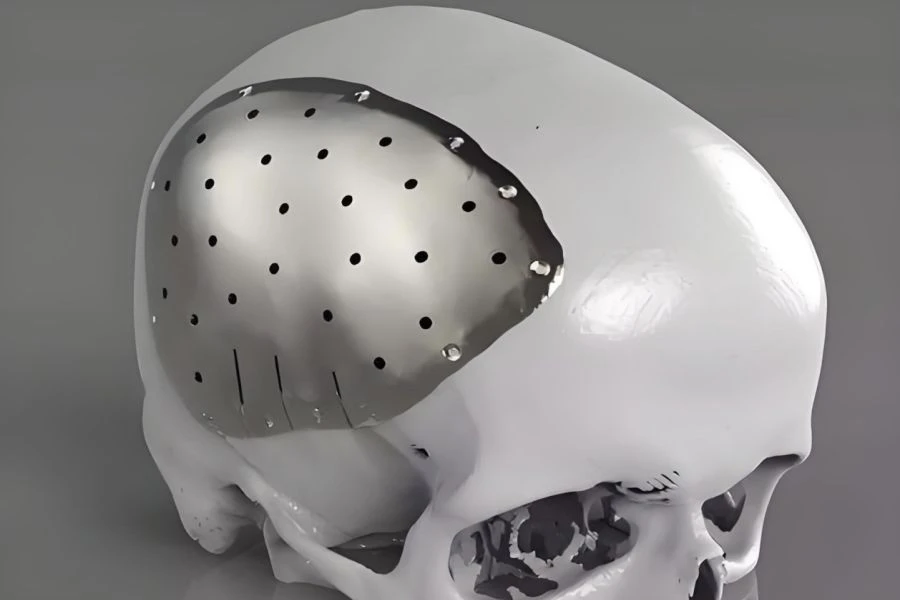

Titanium Alloy Skull
Titanium Alloy Joints
Classification and typical properties of biomedical titanium alloys
| Type | Classification | Typical Properties | Typical Alloy |
|
α |
α |
Low strength, good processability and best biocompatibility |
TA1-TA3 |
|
near α |
Medium strength, good processability and biocompatibility |
Ti3Al2.5V |
|
|
α+β |
α+β |
High strength, good all-around properties, can be aged to increase strength and good biocompatibility |
Ti6Al4V;Ti6Al7Nb |
|
β |
β |
Medium strength, low modulus, good processability and biocompatibility |
Ti30Mo |
| metastable β | Medium-high strength, lower modulus, better all-around properties |
Ti15Mo;Ti12Mo6Zr2Fe |
|
| near β | Age-enhanceable, better processability and biocompatibility |
Ti13Nb13Zr |
ASTM F136-13 Tensile Requirements
|
Thickness |
Tensile Requirements |
|||||||
|
Rm/MPa |
Rp0.2/MPa |
Aa50mm或A/% |
Z/% |
|||||
|
L |
LT |
ST |
L |
LT |
ST |
|||
|
﹤4.75 |
860 |
795 |
10 |
10 |
－ |
－ |
－ |
－ |
|
4.75~﹤44.45 |
860 |
795 |
10 |
10 |
－ |
25 |
－ |
－ |
|
44.45~﹤63.5 |
825 |
760 |
8 |
8 |
－ |
20 |
－ |
－ |
|
63.5~101.60 |
825 |
760 |
8 |
8 |
8 |
15 |
15 |
15 |
ASTM F67-06 Tensile Requirements
|
Grade |
Tensile Requirements | ||
|
Rm/MPa |
Rp0.2/MPa |
A/% |
|
|
GR1 |
≧240 |
170~310 |
≧24 |
|
GR2 |
≧345 |
275~450 |
≧20 |
|
GR3 |
≧450 |
380~550 |
≧18 |
|
GR4 |
≧550 |
483~655 |
≧15 |
