Ti6Al4V Titanium Alloy Square
Name：Titanium alloy square
Brand：KEHUI
Material:Ti6Al4V(UNS R56400)
Standard：ASTM B265,ASTM B381,ASTM F136
Surface: Machined Surface
MOQ: 1 kg or 1 piece
Origin: Baoji, Shaanxi, China
Description
Introduction to Ti-6Al-4V Titanium Alloy
Ti-6Al-4V (UNS R54600) alloy is a medium-strength α-β two-phase titanium alloy containing 6% of the α-stabilizing element AI and 4% of the β-stabilizing element V. The alloy is widely used in the aviation and aerospace industries because of its excellent all-round properties. The alloy can be used at long operating temperatures of up to 400°C. It is mainly used to manufacture fan and compressor disks and blades for engines, as well as important load-bearing components such as beams, joints and spacer frames in aircraft structures.
The main semi-finished products of Ti-6Al-4V titanium alloy include bars, forgings, thick plates, thin plates, profiles and wires.
The alloy has good process plasticity and superplasticity and is suitable for a variety of pressure processing and forming. In addition, the alloy can be welded and machined in a variety of ways.

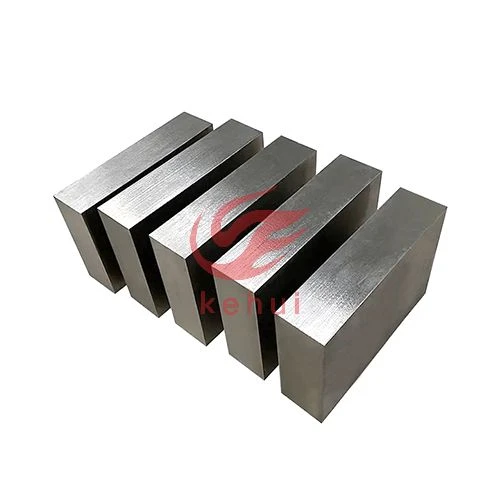

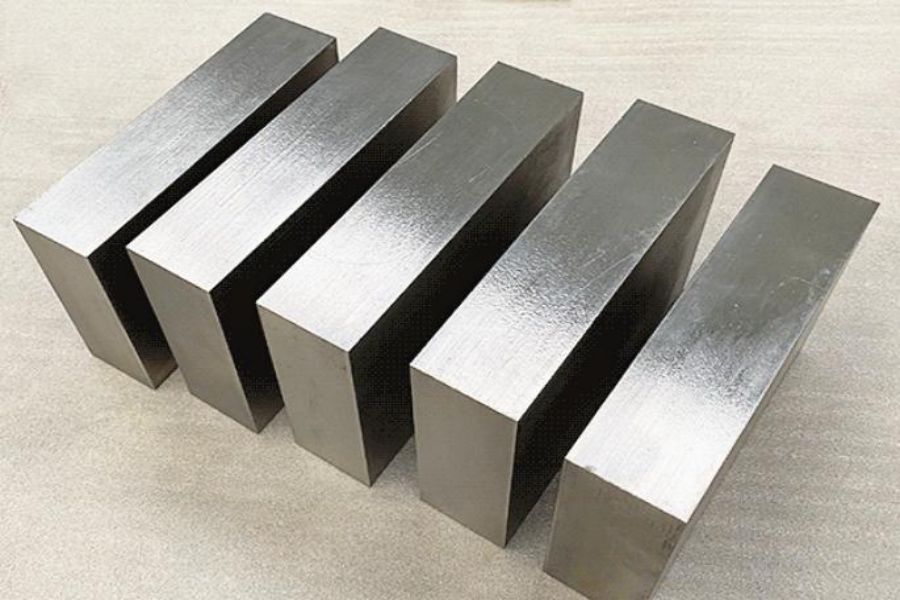

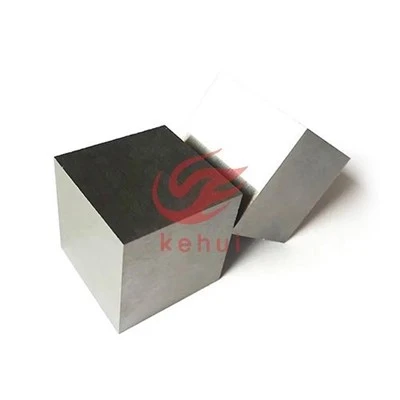

Titanium Square
Titanium Square
Titanium Squar
chemical composition of Ti-6Al-4V titanium alloy(%)
| Grade | Chemical composition(%) | |||||||||||
| Chemical Composition Groups | Ti | Fe | C | N | H | O | Mn | Al | V | Other | ||
| each | total | |||||||||||
| Ti-6Al-4V | Ti-6Al-4V | tolerance | ≦0.30 | ≦0.10 | ≦0.05 | ≦0.015 | ≦0.20 | / | 5.5-6.75 | 3.5-4.5 | ≦0.1 | ≦0.4 |
| GR23 | Ti-6Al-4V | tolerance | ≦0.25 | ≦0.08 | ≦0.03 | ≦0.0125 | ≦0.13 | / | 5.5-6.5 | 3.5-4.5 | ≦0.1 | ≦0.4 |
Ti-6Al-4V titanium alloy mechanical properties
| Grade |
Mechanical properties |
||||
| Tensile Strength,min(MPa) |
Yield Strength (0.2% of Offset) min or range(MPa) |
Elongation in 4D min,% |
Reduction of Area, min,% |
Heat treatment system | |
| Ti-6Al-4V | 895 | 828 | 15 | 25 | 700-800°C,1-3h,air-cooled |
| GR23 | 828 | 759 | 10 | 15 | |
Products Drawing

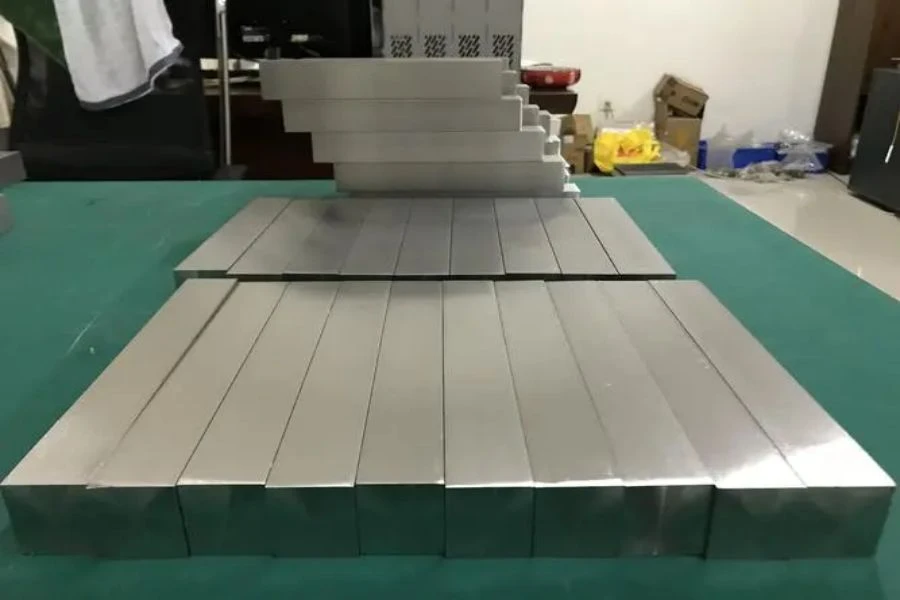

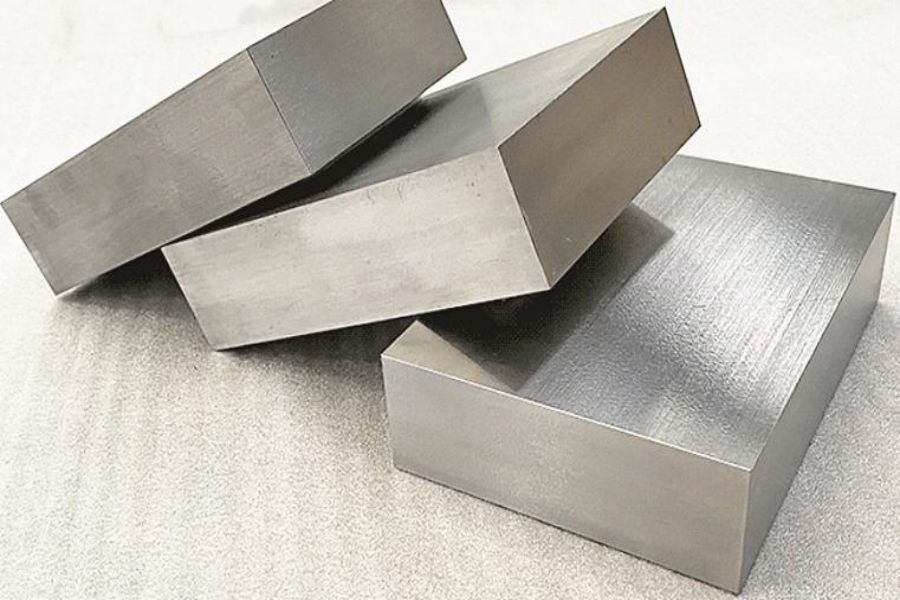

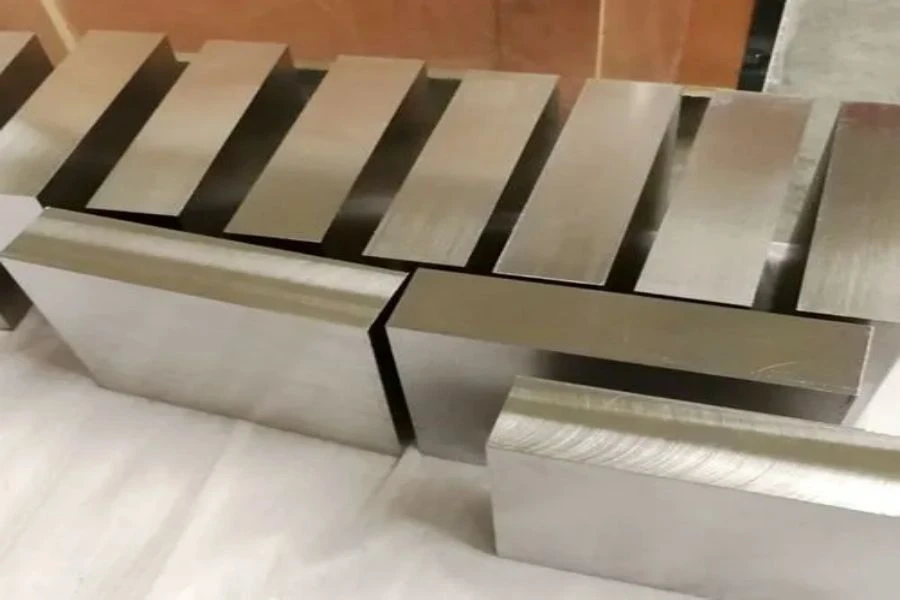

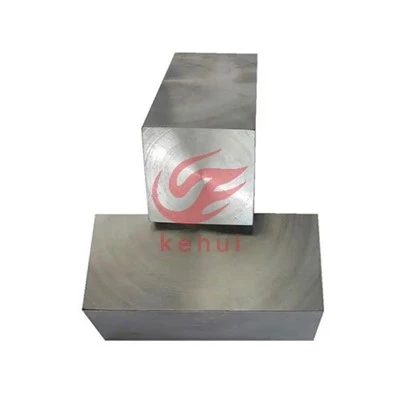

Titanium Alloy
Titanium Alloy
Titanium Alloy
Titanium Alloy
Titanium Alloy
Titanium Alloy
