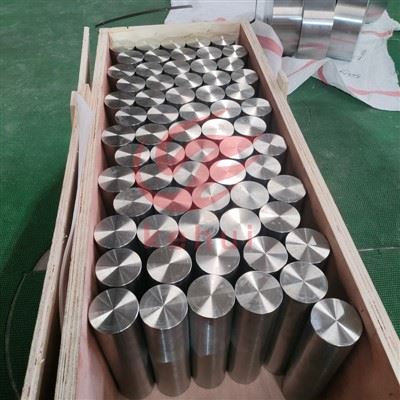

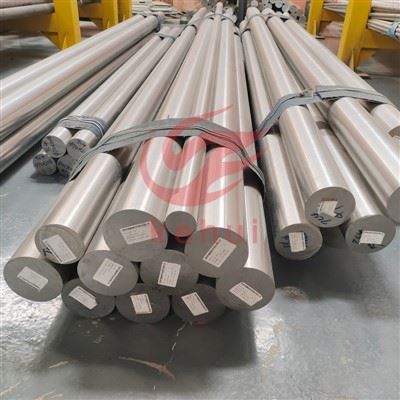

Zr702 Zirconium Rod
Surface：Pickled、Bright、Polished、Satin
Shape：Round Bar
Standard：ASTM B550
Grade：Zr702 Zr705
Specification：as your requirement
Description
Product Description Tel：+86 17719616665
R60702
Zirconium is a rare metal with amazing corrosion resistance, extremely high melting point, super hardness and strength and other characteristics. It is widely used in aerospace, military industry, nuclear reactions, and atomic energy fields.
Density: 6.49g/cm3
Purity: 99.2%min.
Boiling Point: 4377℃
Melting Point: 1852℃
Processing: forging
R60702 Usage
Zirconium is an important material in the manufacture of weapons such as armored vehicles, tanks, cannons, and bulletproof panels.
Product parameterTel: +86 17719616665
| Designation | Products name | Surface condition | Diameter(mm) | Length |
| Zr702 | Zirconium wire | Annealing Cold-worked |
0.8~<2.5 | 500~1000 |
| 2.5~13 | 500~3048 | |||
| Zirconium bar | Annealing Heat process |
6.35~<12.7 | 1000~3048 | |
| 12.7~<38.1 | 1000~3048 | |||
| 38.1~<150 | 1000~4064 |
| Chemical composition | |||||
| Grade | Zr700 (R60700) |
Zr702 (R60702) |
Zr704 (R60704) |
Zr705 (R60705) |
Zr706 (R60706) |
| Component % | |||||
| Zr+Hf(min) | 99.2 | 99.2 | 97.5 | 95.5 | 95.5 |
| Hf(max) | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Fe+Cr | 0.20(max) | 0.20(max) | 0.2-0.4 | 0.20(max) | 0.20(max) |
| Sn | - | - | - | 1.0-2.0 | - |
| H(MAX) | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 |
| C(max) | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Nb | - | 2.0-3.0 | 2.0-3.0 | ||
| O(max) | 0.1 | 0.16 | 0.18 | 0.18 | 0.16 |
| Mechanical property | |||||
| Grade | Zr700 (R60700) |
Zr702 (R60702) |
Zr704 (R60704) |
Zr705 (R60705) |
Zr706 (R60706) |
| Tensile strength min(Mpa) | 380 | 415 | 550 | 510 | |
| Yield strength min(Mpa) | 205 | 240 | 380 | 345 | |
| Tensile strength max(Mpa) | 380 | ||||
| Yield strength max(Mpa) | 305 | ||||
| Elongation min % | 2 | 16 | 14 | 16 | 20 |
| Bending radius * | 5T | 5T | 5T | 3T | 2.5 |
Company profile Tel：+8617719616665
Baoji Kehui Titanium Industry Co., LTD
was founded in 2011 and is situated in Baoji City, also referred to as the "Titanium Valley." With 40 production artisans, 20 advanced artisans, and 12 engineers, we have entire production lines for titanium and titanium alloy.
Professional manufacturer with a focus on zirconium and titanium. Zirconium bars, Titanium bars, forgings, Titanium tubes, Titanium big diameter seamless pipes, and other nonferrous metals are some of our primary products.
FAQ Tel：+86 17719616665
Q: What's the payment and the delivery time?
A: Payment<=1000 USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance ,balance before shipment.
Generally it is 5-7 days if the goods are in stock or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples , but we don't pay the freight.
