Ti6Al4V Titanium Forging Disk

Name: Ti6Al4V Titanium Forging Disk
Brand: KEHUI
SKU: 236680916

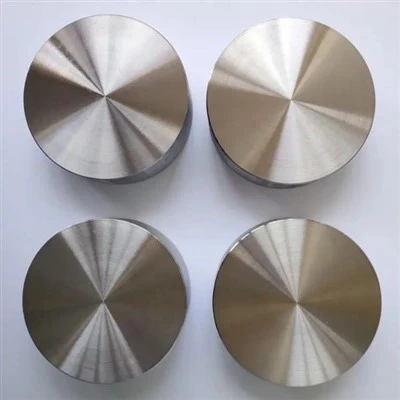

Name:Ti6Al4V Forged Disk
Grade:GR1,GR2,GR5,GR12
Brand:KEHUI
Standard：ASTM B381
MOQ: 1 kg or 1 piece

Send Inquiry

Description

Products Description

Brief description of TC4

TC4 alloy is a medium-strength α-β two-phase titanium alloy containing 6% of the α-stabilizing element AI and 4% of the β-stabilizing element V. The alloy has an excellent combination of properties, and is most widely used in the aviation and aerospace industries. The alloy has a long working temperature of up to 400°C. In the aerospace industry, it is mainly used for the manufacture of engine fans and compressor disks and blades, as well as important load-bearing components such as beams, joints and spacer frames in the structure of aircraft.

The main semi-finished products of TC4 titanium alloy are bars, forgings, thick plates, thin plates, profiles and wires. The alloy is mainly used in the annealed condition and can also be strengthened to some extent by solid solution aging, however the hardened cross section is generally not more than 25mm.

The alloy has good process plasticity and superplasticity and is suitable for a wide range of pressure machining and forming. The alloy can also be welded and machined in various ways.

Product Parameters
Grade	GR1,GR2,GR3,GR5,GR6,GR7,GR12
Product Standards	ASTM B381,ASTM F136,
Product Specification	Φ40-3000*T20-1000
Condition	Annealed Condition (M) Hot Worked Condition (R) Cold Worked Condition (Y)
