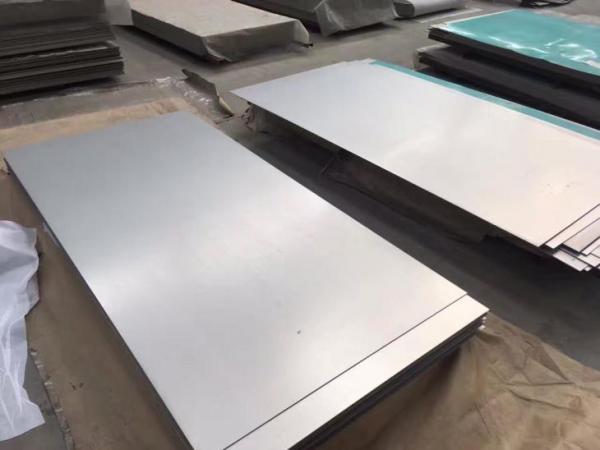

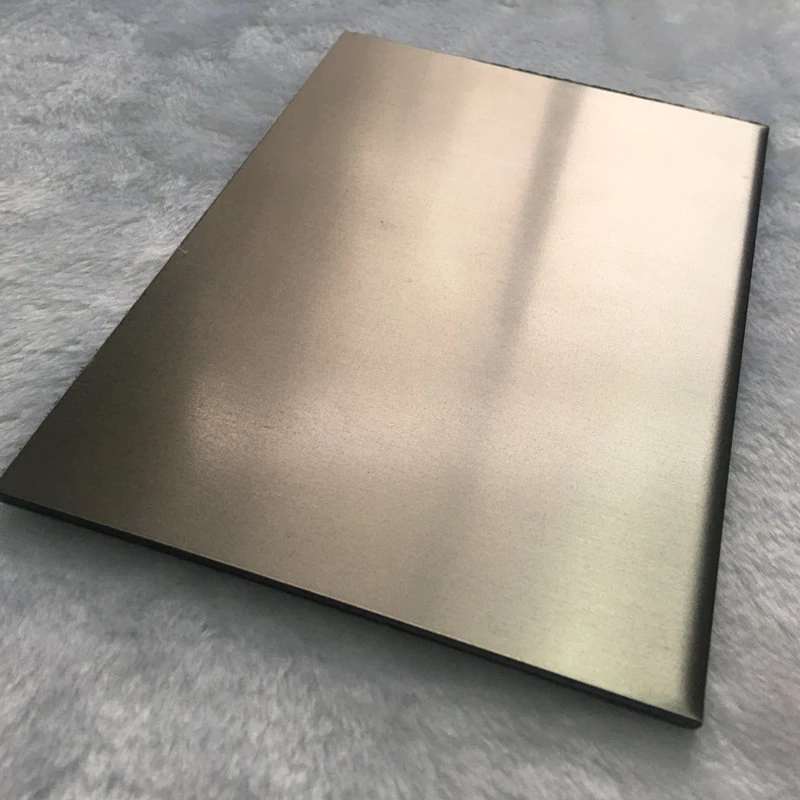

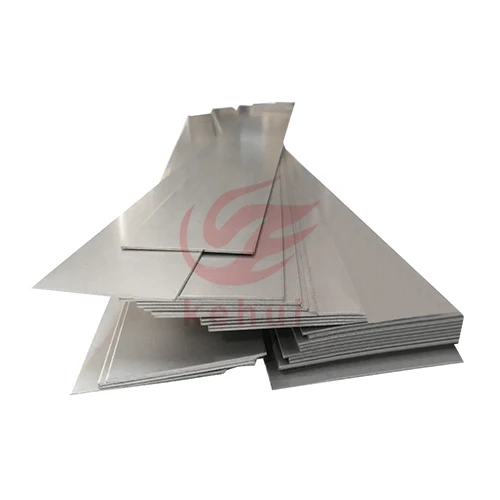

Gr2 Titanium Plate

Gr2 titanium plate is a high-quality, lightweight and durable product used in a variety of industrial and commercial applications. It is made from grade 2 titanium, which is known for its excellent corrosion resistance, strength, and low density. The plate typically has a thickness ranging from 0.5 mm to 50 mm, making it suitable for a wide range of applications.



One of the standout features of Gr2 titanium plate is its resistance to corrosion. It can withstand exposure to a wide range of chemicals, including acids, alkalis, and saltwater, allowing it to be used in harsh environments. Additionally, the plate retains its strength and integrity even at high temperatures, making it suitable for use in aerospace, automotive, and marine industries.



The Gr2 titanium plate is also easy to fabricate, weld, and machine, allowing it to be shaped into custom components for specific applications. The plate is available in various sizes and shapes, making it suitable for use in medical implants, chemical processing equipment, and other precision machinery.



In summary, Gr2 titanium plate is a versatile, high-performance product that offers exceptional strength, durability, and corrosion resistance.

Chemical Composition

Grade	Ti(%)	N(%)	Fe(%)	C(%)	O%	H%
Gr2	99.2max	0.03	0.3max	0.1max	0.25max	0.015max



Mechanical Properties

Grade	Tensil strength	Yeild strength	Ductility	Modulus of elasticity	Hardness	Poisson's Ratio
	Mpa	Mpa	%	Gpa	RB
Gr2	370	240	20-25	105	80-90	0.34-0.37







1、High Strength-to-Weight Ratio: One of the most significant advantages of the Gr2 titanium plate is its high strength-to-weight ratio. This material is known to be stronger than steel, yet much lighter in weight, making it a preferred choice in applications that require strength and durability without adding excessive weight.



2、Corrosion Resistance: Gr2 titanium plate has excellent corrosion resistance, which makes it ideal for use in harsh environments. It can withstand exposure to saltwater, acids, alkaline solutions, and many other corrosive chemicals, making it perfect for marine and chemical processing applications.



3、Biocompatibility: Gr2 titanium plate is biocompatible, meaning that it does not react negatively with biological tissues or fluids. It is, therefore, widely used in medical implants such as dental implants, pacemaker casings, bone screws, and joint replacements.



4、High Heat Resistance: Gr2 titanium plate can withstand high temperatures and is resistant to thermal deformation. This makes it suitable for use in applications that involve high temperatures such as heat exchangers, furnace parts, and heat shields.



5、Low Thermal Expansion: Another advantage of Gr2 titanium plate is that it has a low thermal expansion coefficient, which means it does not expand or contract much when exposed to temperature changes. This property makes it ideal for use in precision instruments and machines.





1、Aerospace industry: The aerospace industry uses Gr2 titanium products for structural components such as landing gear parts, aircraft frames, and jet engines. The lightweight nature of titanium makes it useful in reducing the overall weight of the aircraft, thus lowering fuel consumption.



2、Chemical processing industry: The chemical processing industry uses titanium products for equipment that comes into contact with corrosive chemicals. Due to its corrosion resistance, Gr2 titanium plates are ideal for manufacturing chemical processing equipment such as reactors, heat exchangers, and valves.



3、Medical industry: Titanium's biocompatibility with the human body makes it useful in the medical industry for prosthetic implants, surgical instruments, dental implants, and orthopedic devices.



4、Marine industry: Gr2 titanium plates can withstand harsh marine environments due to its corrosion resistance properties. This makes it useful in the manufacturing of boats, ships, and underwater equipment such as propellers and underwater cameras.



5、Power generation industry: Gr2 titanium products are used to manufacture heat exchangers and condenser tubes in nuclear and thermal power plants due to their resistance to corrosion.





Determine the application for the Gr5 Titanium alloy bar, and then select the appropriate size and shape for the bar.

Prepare the work area where you will be using the Gr5 Titanium alloy bar, ensuring that it is clean and free of dust, debris, and other contaminants.

Use appropriate safety equipment, such as gloves and eye protection, as titanium can be hazardous when ingested or breathed in.

Cut the titanium bar to the desired length and shape using a saw or other cutting tool that is appropriate for use with titanium.

If necessary, perform any additional machining or processing steps, such as drilling holes, grinding, or sanding, to achieve the desired finished product.

Always handle the titanium with care, as it can be easily scratched or damaged if mishandled, leading to potential issues with the final product.

Finally, use the finished Gr5 Titanium alloy bar in your chosen application, always following any safety and usage guidelines associated with the specific application.





Material	titanium alloy (Gr2)
Tolerance	Thickness: +/- 0.05mm,Width: +/- 0.1mm,Length: +/- 1.0mm,Hardness: HB160-HB230
Dimensions	Thickness: 1-50mm，Width: 1000-3000mm，Length: 1000-8000mm
Finish	Cold Rolled,Polished
Density	4.51 g/cm3
Standard	1ASTM B265







Q:May i customize ?

A:Sure.Goods will be customized as per your requirements or drawings.



Q:How are Gr2 titanium plates made ?

A:Gr2 titanium plates are made by melting titanium sponge and then casting it into slab form. The slab is then processed through a series of rolling mills until it reaches the desired thickness.



Q:How to guarantee the quality?

A:Certificate of inspection is supplied with shipment. the third-party inspection is acceptable.
