Ti -6Al-4V Titanium Forging





Ti-6Al-4V titanium forgings are manufactured from a titanium alloy composed of 6% aluminum and 4%vanadium. This alloy is highly corrosion-resistant and offers excellent strength, hardness, and toughness. The Ti-6Al-4V alloy is often used to manufacture components for aerospace and medical applications due to its high strength-to-weight ratio and its ability to withstand extreme temperatures. Ti-6Al-4V titanium forgings can be hot or cold formed, machined, and welded. It is now the world's most outstanding metal in the field of titanium alloys.



Ti-6Al-4V titanium forgings have the advantages of both α and β titanium alloys, i.e. good plasticity, good thermal strength (400°C in long-term work), strong resistance to seawater corrosion, simple production process, can be welded, hot and cold forming, and can be strengthened by quenching and ageing treatment. It is mainly used in aircraft compressor discs and blades, naval pressure resistant shells, large size forgings, die forgings, etc.



After the titanium forgings are made into parts, they are subjected to different forces, importance and working conditions in use, and different materials and metallurgical processes. Therefore, titanium forgings in different parts according to the above conditions, according to the requirements of the sector for classification, titanium forgings in different sectors and standards in the classification of different. However, the quality inspection of titanium forgings cannot be separated from two kinds of inspection, i.e. appearance quality inspection and internal quality inspection. But titanium forgings due to different categories, specific inspection items, inspection quantities and inspection requirements are also different.





Physical properties

Density: 4.428g/cm3 (0.160lb/in3)

Modulus of elasticity: 105-116 Gpa (15.2-16.8 psi x 106)

Beta phase change point: 955+/-15°C (1825+/-25°F)

Liquid phase point: 1655+/-20°C (3011+/-35°F)

Solid phase point: 1605+/-10°C(2920+/-20°F)

Coefficient of resistance: ~1.5μΩ*m(-250℃)

~1.75μΩ*m(Room temperature)

~1.9μΩ*m(530℃)

Magnetism: Ti-6Al-4V titanium forging vanadium is not





Strength of annealed Ti-6Al-4V titanium forgings at normal room temperature:

Maximum tensile strength: 1380-2070Mpa (200-300ksi)

Compressive yield strength: 825-895Mpa (120-130ksi)

Maximum shear strength: 480-690Mpa (70-100ksi)

Temperature enhanced workability: the higher the temperature, the lower the strength.

Fatigue limit: The fatigue limit of Ti-6Al-4V titanium forgings is mainly influenced by the microstructure and surface condition. The general fatigue limit indices for annealed machined materials are shown below.

Fatigue limit range for titanium 6 aluminium-4 vanadium (shaft fatigue R=0.06-1)

Bright: 400-700Mpa (60-100ksi)

Notched: 140-270Mpa (20-40 ksi)

Fracture toughness

The fracture toughness of Ti-6Al-4V titanium forgings is intermediate between aluminium alloys and steel. The ELI grade of Ti-6Al-4V titanium forgings has a higher toughness than the normal grade.



Ti-6Al-4V titanium forgings also have good low temperature working performance. Below -196 ℃ still has good toughness, used in the manufacture of low-temperature high-pressure containers, such as rockets and missiles, such as liquid hydrogen fuel tanks.









Density melting point and mechanical properties of Ti-6Al-4V titanium forgings
Density p(kg/m3)	Melting point Tm(C)	Modulus of elasticity E(Gpa)	Hardness HBC
4450	1538~1649	113	69





Thermal conductivity of Ti-6Al-4V titanium forgings
Temperature (C)	20	100	200	300	400	500	600	1500	2500
Thermal conductivity no (W/m-C)	5.44	6.70	8.79	10.47	12.56	14.24	15.91	22.10	22.20



Specific heat capacity of Ti-6Al-4V titanium forgings
Temperature (C)	100	200	300	400	500	600	1000	1500	2500
Specific heat capacity C (kg-C)	678	691	703	741	754	879	1030	1850	1852





General corrosion rates of Ti-6Al-4V titanium forgings in different media

Media	Concentration（%）	Temperature		Corrosion rate
		℃	℉	Mm/Yr	Mils/Yr
Seawater	No	Room temperature	Room temperature	0	0
Hydrochloric acid	2	37.8	100	0-0.30	0-1.2
Hydrochloric acid	10	37.8	100	0.508-1.02	20.0-40.0
Hydrochloric acid+5%CrO3	10	65.6	150	0-0.005	0-0.2
Hydrochloric acid	Vaporization	37.8	100	8.33-1.04	328-408
Nitric acid	65	Boiling	Boiling	0.076-0.13	3.0-5.0
Sulphuric acid	2	37.8	100	0.396-0.549	15.6-21.6
NaOH	25	Boiling	Boiling	0.046-0.051	1.8-2.0

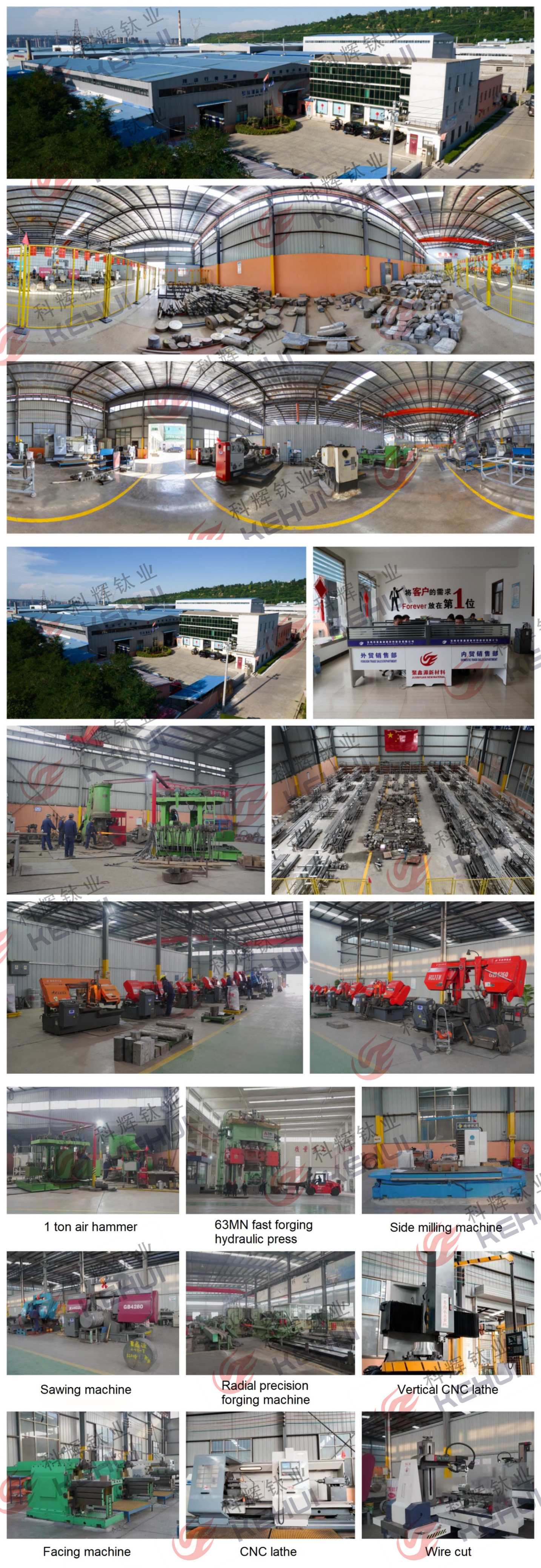

Precision tooling, equipment and a team of knowledgeable and highly skilled engineers, metallurgists and quality staff are essential to ensure that forged titanium parts effectively meet the needs of our customers.



Kehui Titanium is your qualified titanium forging partner. We offer services for a wide range of titanium alloys and are able to custom forge in a variety of shapes and sizes. Cofai Titanium is committed to having a team of highly skilled metallurgists to understand the intricacies of machining titanium alloys. We are committed to understanding our customers' needs for their forged components, whether common or special models, and are ready to assist you in order to meet your unique product requirements.















Q: What qualifications have you achieved?

A:Have the weapon equipment quality management system certification certificate, quality management system certification certificate and National Level 2 Confidentiality Certification.



Q: Can I make special grades of titanium products?

A: Yes, any special brand will do



Q: Can I provide samples?

A: Available free of charge
