Gr9 Titanium Sheet





GR9: Nominal composition Ti-3Al-2.5V Commonly known as half-Gr5 alloy GR9 titanium alloy tube Tensile strength is generally around 600MPa. It is a medium strength titanium alloy tube. Higher strength than pure titanium tubes and lower price than Gr5 titanium alloy tubes. The performance of titanium and the impurity content of carbon, nitrogen, hydrogen, and oxygen contained, with the cleanest titanium iodide impurity content of no more than 0.1%, make titanium alloy tubes a new metal, but their strength is low and their plasticity is high. Density = 4.5g/cm3, melting point = 1725 °C, thermal conductivity = 15.24W/(m.K), tensile strength = 539 MPa, and elongation = 25% are the properties of 99.5% industrially pure titanium.



GR9 titanium sheet will not fracture, will not rust, and will not corrode in any atmospheric environment. It is so resistant to corrosion that it does not even require any painting, we just lightly rub the surface to brighten its natural colour.



GR9 titanium sheet is suitable for aircraft and engine hydraulic and fuel piping systems, and has been used in a variety of military and civilian aircraft and aerospace applications, making Grr9 titanium sheet the ideal material for making high-pressure resistant lightweight ducts for aircraft with excellent overall performance.



Gr9 physical properties

Density: 4.47/cm³.

Room temperature modulus of elasticity 118-123 GPa.

Phase change point: 925°C.

Hardness 15-17 HRC.









Gr9Chemical composition

Grades	Chemicai composition(WT%)
Gr9	Chemical composition	(Ti)	(Fe)	(C)	(N)	(H)	(O)	（AI)	（v）	Other impurities
										Single	Total
	Industrial pure titanium	Residuals	≤0.25	≤0，08	≤0.05	≤0.015	≤0.12	2.0～3.5	1.5～3.0	≤0.1	≤0.4



Properties of Gr9 titanium alloy according to technical standards

Technical standards

Species

Status

Specs /mm

Sampling direction

Room temperature performance

High temperature performance

Rm/MPa

Rp0.2/MPa

A/%

α/(°)

350℃

400℃

Rm/MPa

σ100h/MPa

Rm/MPa

σ100h/MPa

Not less than

GB/T3621-2007

Sheet

M

0.5~1.0> 1.0~2.0> 2.0~4.0> 4.0~5.0> 5.0~10.0

LT

590~735

-

25 25 20 15 15

100 70 60 60

340

320

310

280







and supplier of high quality titanium products in China. Established in 2011, the company has developed into a reliable source of titanium tubes, rods, plates, pipes and forgings as well as civil zirconium and zirconium alloy products.

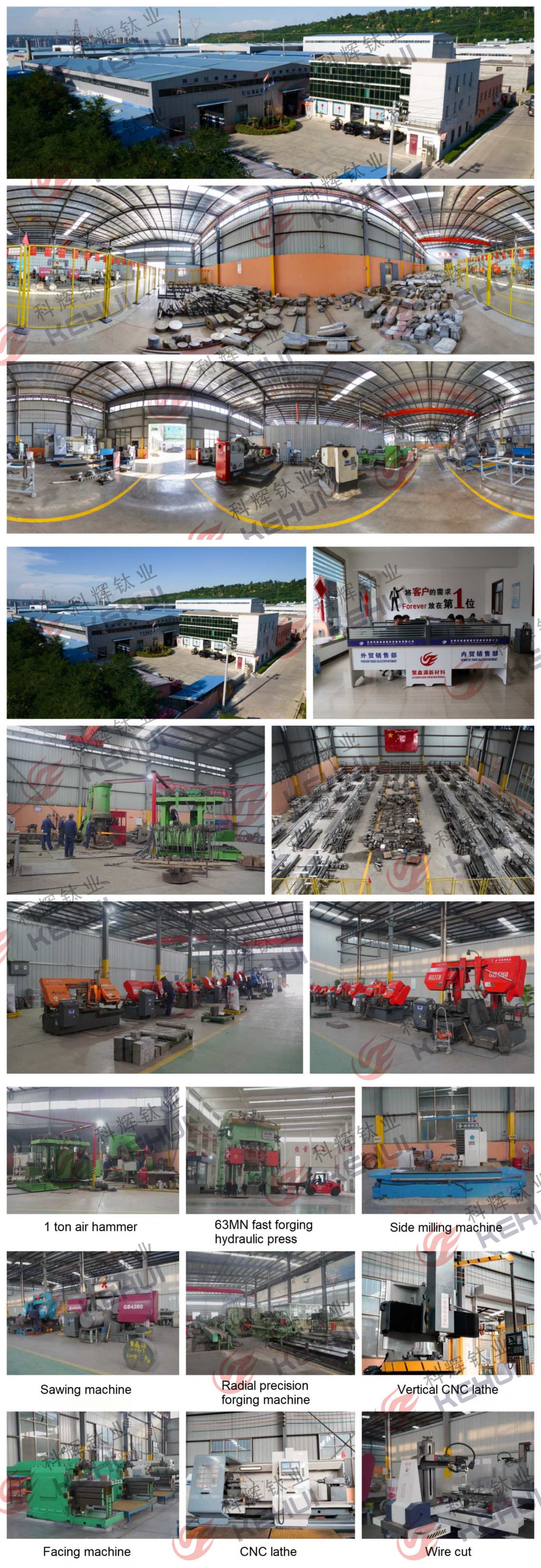

The company operates a state-of-the-art production facility in the city of Baoji, which is known as the "Titanium City" due to its high concentration of titanium-related industries. Kehui's production processes are highly automated and use the latest equipment and technology to ensure precision and consistency in all its products.



Baoji Kehui has obtained many certifications in quality management and product safety such as ISO9001, AS9100D, PED and TUV. The company is committed to providing innovative solutions with superior quality and excellent customer support.



















Q:Are you a manufacturing plant or a trading company?

A: We have a production line and a factory.



Q:What are the terms of payment?

A: We accept T/T (full payment up to $1000, 30% in advance over $1000), which is negotiable.



Q:How is the quality assurance?

A: In addition to performing SGS tests, we also have our own quality control system. We can assist with additional third-party inspection if necessary.



Hot Tags: gr9 titanium sheet, China gr9 titanium sheet manufacturers, suppliers, factory, GR7 Titanium Plate, Polished Titanium Plate, Titanium Plate, Gr9 Titanium Sheet, Ti 6Al 4V Titanium Sheet, Gr2 Titanium Plate
