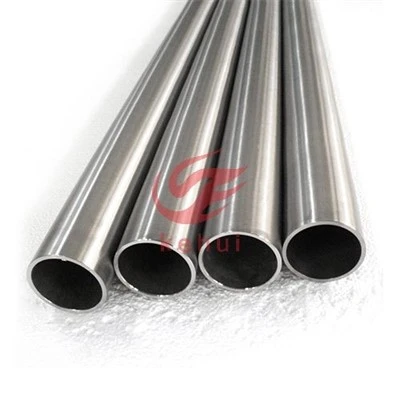

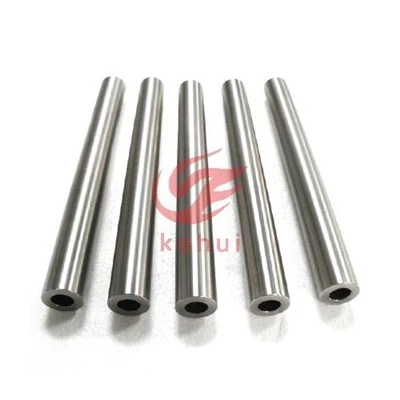

ASTM B338 Titanium And Titanium Alloy Tube
Name:Titanium Sheet
Grade:GR1,GR2,GR7,GR12,GR5,
Brand:KEHUI
Standard：ASTM B338,ASTM B861,ASTM B862
MOQ: 1 kg or 1 piece
Description
Baoji Kehui Titanium Industry Co., Ltd. was established in March 2011, and its subsidiary, Baoji Juxinyuan New Materials Co., Ltd., was established in May 2017.
The company has been deeply cultivating titanium metal materials for 15 years, and is a high-tech enterprise focusing on R&D, production and sales of pipes, rods, plates, wires, forgings and various chemical corrosion-resistant equipment of rare and precious metals such as titanium and titanium alloy, zirconium and zirconium alloy, adhering to the collection of scientific research, manufacturing, sales and service as one of the modern new concept.
01
High Quality
The company has passed the international quality management system certification such as BS EN ISO 9001:2015, EN 9100 : 2018, Iso9001:2015.
02
Advanced Equipment
The company has advanced production equipment such as VAR vacuum self-consumption melting furnace, 4500T, 6500T fast forging machine and plate, bar and pipe rolling mill.
03
Professional Team
Our company has professional production, technology, sales and after-sales service team to serve our customers.
04
Custom Service
Our company provides professional titanium alloy material customization service to meet the different needs of customers, and is committed to reducing material waste, lowering carbon emissions and creating a green circular economy.
Products Description
Standard
ASTM B338, ASTM B861, ASTM B862
Grade
Gr1,Gr2,Gr5,Gr9,Gr12
Types
Seamless Tube,Welded Pipe
Seamless tubes can be produced
|
Grade |
State |
Outer diameter (mm) |
Wall thickness(mm) |
|||||||||||||||
| 0.2 | 0.3 | 0.5 | 0.6 | 0.8 | 1.0 | 1.25 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 | 5.0 | 5.5 | |||
|
GR1 GR2 GR7 GR12 |
Annealed state(M) |
3~5 | o | o | o | o | - | - | - | - | - | - | - | - | - | - | - | - |
| ＞5~10 | - | o | o | o | o | o | o | - | - | - | - | - | - | - | - | - | ||
| ＞10~15 | - | - | o | o | o | o | o | o | o | - | - | - | - | - | - | - | ||
| ＞15~20 | - | - | - | o | o | o | o | o | o | o | - | - | - | - | - | - | ||
| ＞20~30 | - | - | - | o | o | o | o | o | o | o | - | - | - | - | - | - | ||
| ＞30~40 | - | - | - | - | o | o | o | o | o | o | o | - | - | - | - | - | ||
| ＞4~50 | - | - | - | - | - | o | o | o | o | o | o | o | - | - | - | - | ||
| ＞50~60 | - | - | - | - | - | - | o | o | o | o | o | o | - | - | - | - | ||
| ＞60~80 | - | - | - | - | - | - | - | o | o | o | o | o | o | o | o | - | ||
| ＞80~114 | - | - | - | - | - | - | - | - | - | o | o | o | o | o | o | o | ||
Remarks: "o" can be produced in specifications.
Welded pipe specifications available online
| Pipe Diameter | Thickness | |||||||||
| Φ12.7 | 0.5 | 0.7 | 0.8 | 1.0 | 1.2 | 1.5 | ||||
| Φ15.88 | 0.5 | 0.7 | 0.8 | 1.0 | 1.2 | 1.5 | ||||
| Φ19 | 0.5 | 0.7 | 0.8 | 1.0 | 1.2 | 1.5 | ||||
| Φ22 | 0.5 | 0.7 | 0.8 | 1.0 | 1.2 | 1.5 | ||||
| Φ25.4 | 0.5 | 0.7 | 0.8 | 1.0 | 1.2 | 1.5 | ||||
| Φ32 | 0.5 | 0.7 | 0.8 | 1.0 | 1.2 | 1.5 | 2.0 | |||
| Φ38 | 0.5 | 0.7 | 0.8 | 1.0 | 1.2 | 1.5 | 2.0 | |||
| Φ50.8 | 0.5 | 0.7 | 0.8 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | ||
| Φ60 | 0.5 | 0.7 | 0.8 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | ||
| Φ63 | 0.5 | 0.7 | 0.8 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | ||
| Φ70 | 0.5 | 0.7 | 0.8 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 | |
| Φ76 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 | ||||
| Φ89 | 2.5 | 3.0 | ||||||||
| Φ108 | 2.5 | 3.0 | 4.0 | |||||||
| Φ114 | 2.5 | 3.0 | 4.0 | |||||||
| Φ133 | 3.0 | 4.0 | ||||||||
| Φ159 | 3.0 | 4.0 | ||||||||
| Φ168 | 3.0 | 4.0 | ||||||||
| Φ219 | 3.0 | 4.0 | ||||||||
| Φ273 | 3.0 | 4.0 | ||||||||
| Φ325 | 3.0 | 4.0 | ||||||||
Our Cases
Titanium seamless tube
Specification： Φ5.0-114.0mm,L=12000mm
Quality Standard： ASTM B338,ASTM B361
Material grade：Gr1,Gr2,Gr7,Gr12
Our Advantages：
Excellent oxidation resistance
Significant corrosion resistance
Outstanding high temperature resistance
High thermal conductivity
Titanium seamless tubes for heat exchangers
Titanium tube is light in quality, high in strength and has superior mechanical properties. It is widely used in heat exchange equipment, such as tube heat exchanger, coil heat exchanger, serpentine tube heat exchanger, condenser, evaporator and conveying pipeline. Many nuclear power industries use titanium tubes as the standard tubes for their units.
Supply grade:BT1-00,BT1-0,Gr1,Gr2,Gr7,Gr12
Quality Standard： ASTM B338,ASTM B361

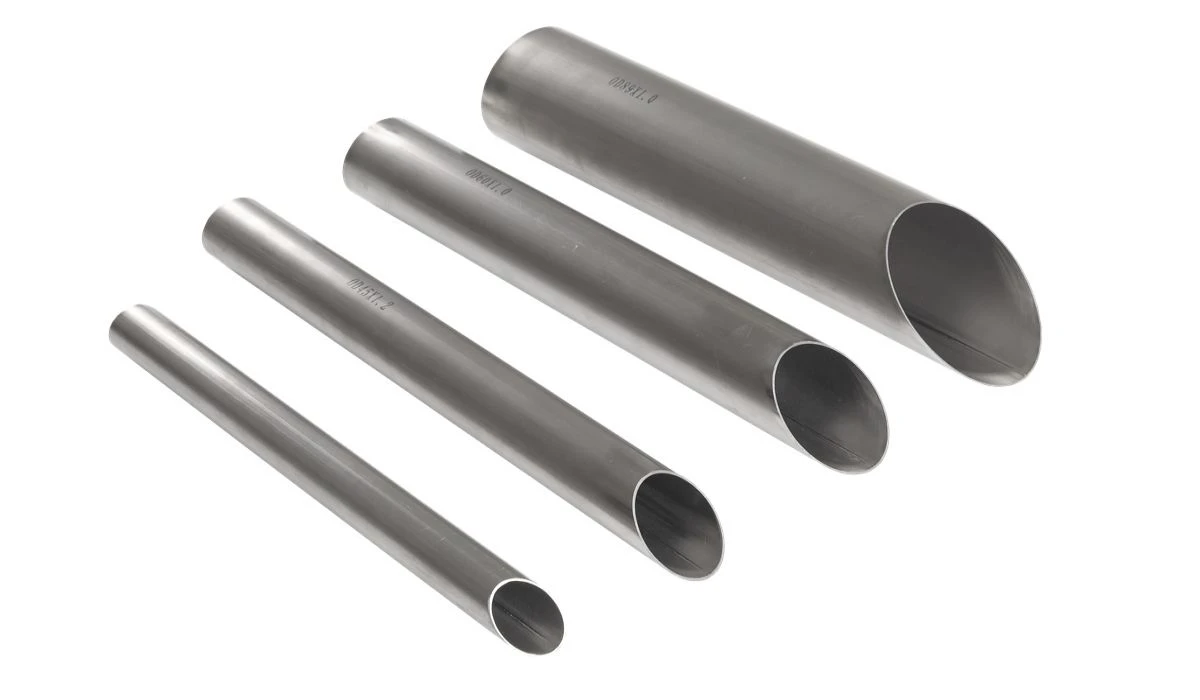

Titanium welded tubes for heat exchangers
Available titanium welded pipe specification range: Φ6mm-114mm, thickness: 0.3mm-3.0mm, length according to customer requirements production.
Quality Standard：ASTM B 862,ASTM B 338
Material grade：Gr1,Gr2,Gr12.
Testing:
Hydrostatic test
Eddy current flaw detection
Product use: power station condenser, seawater desalination, petroleum, chemical industry, pharmaceutical apparatus, shipbuilding, papermaking, food processing, fluid conveying pipe, automobile exhaust pipe and so on.
Titanium alloy tube
Due to its high strength, titanium alloy is not suitable for rolling tubes. But in the aerospace, petrochemical field titanium alloy tube is widely used. Titanium alloy tubes are machined from titanium rods. Titanium rods are drilled to obtain titanium alloy tubes with excellent properties.
Main grades:Gr5,Ti-62222S,Ti-6246,Ti-662,BT3-1,BT-22,OT4-1
Product photos

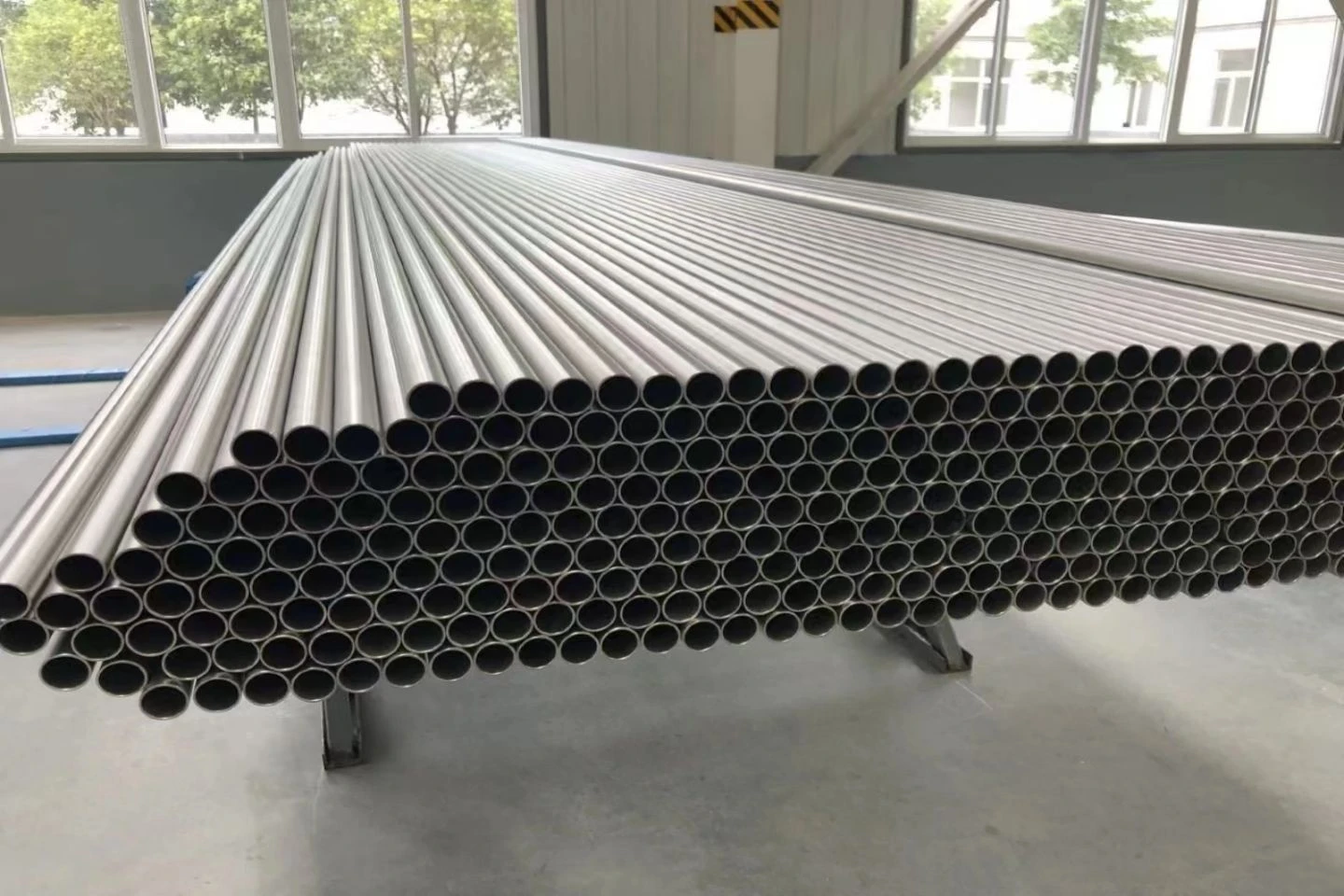

Titanium heat exchanger tubes
Titanium coiled tubes

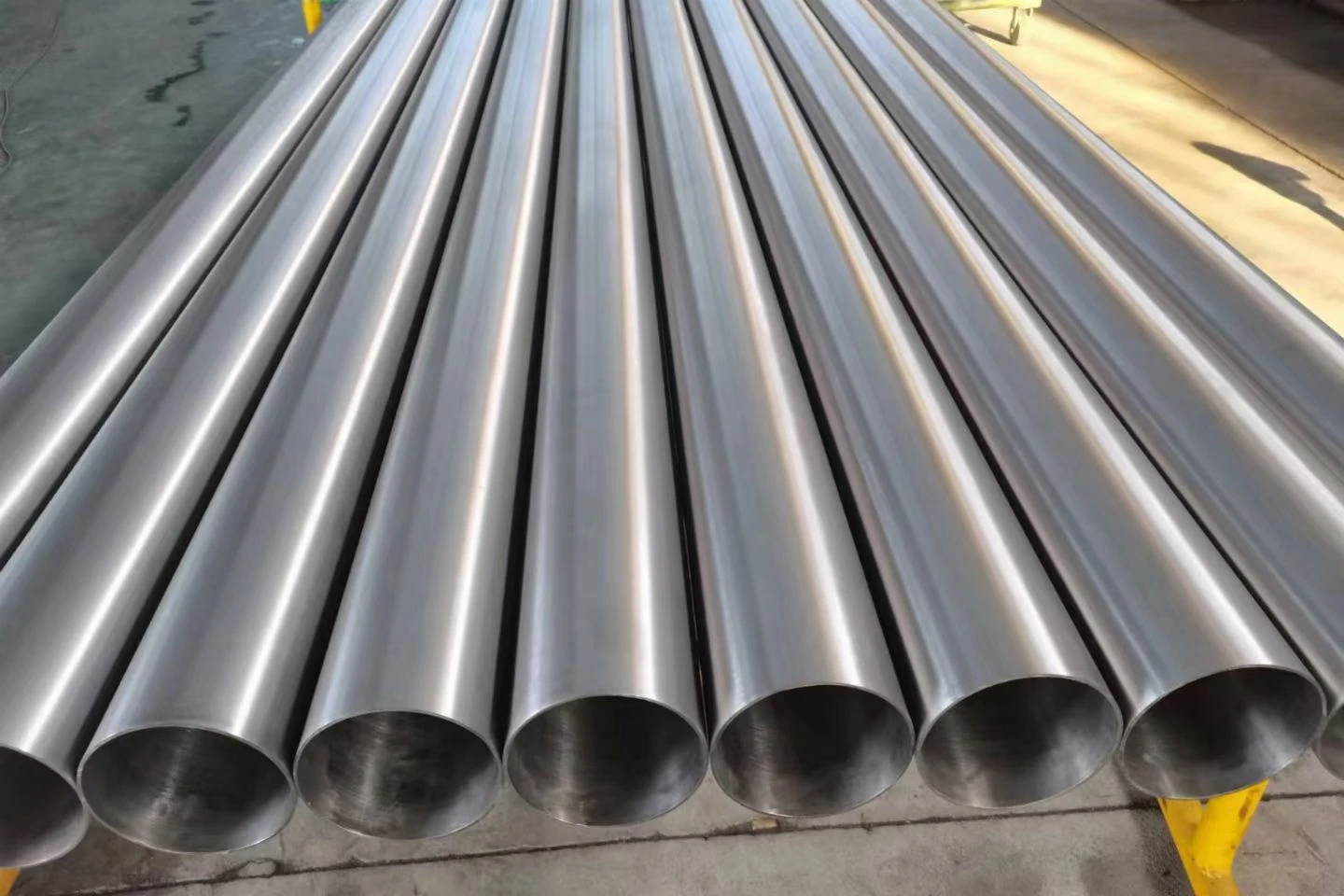

Titanium seamless tube

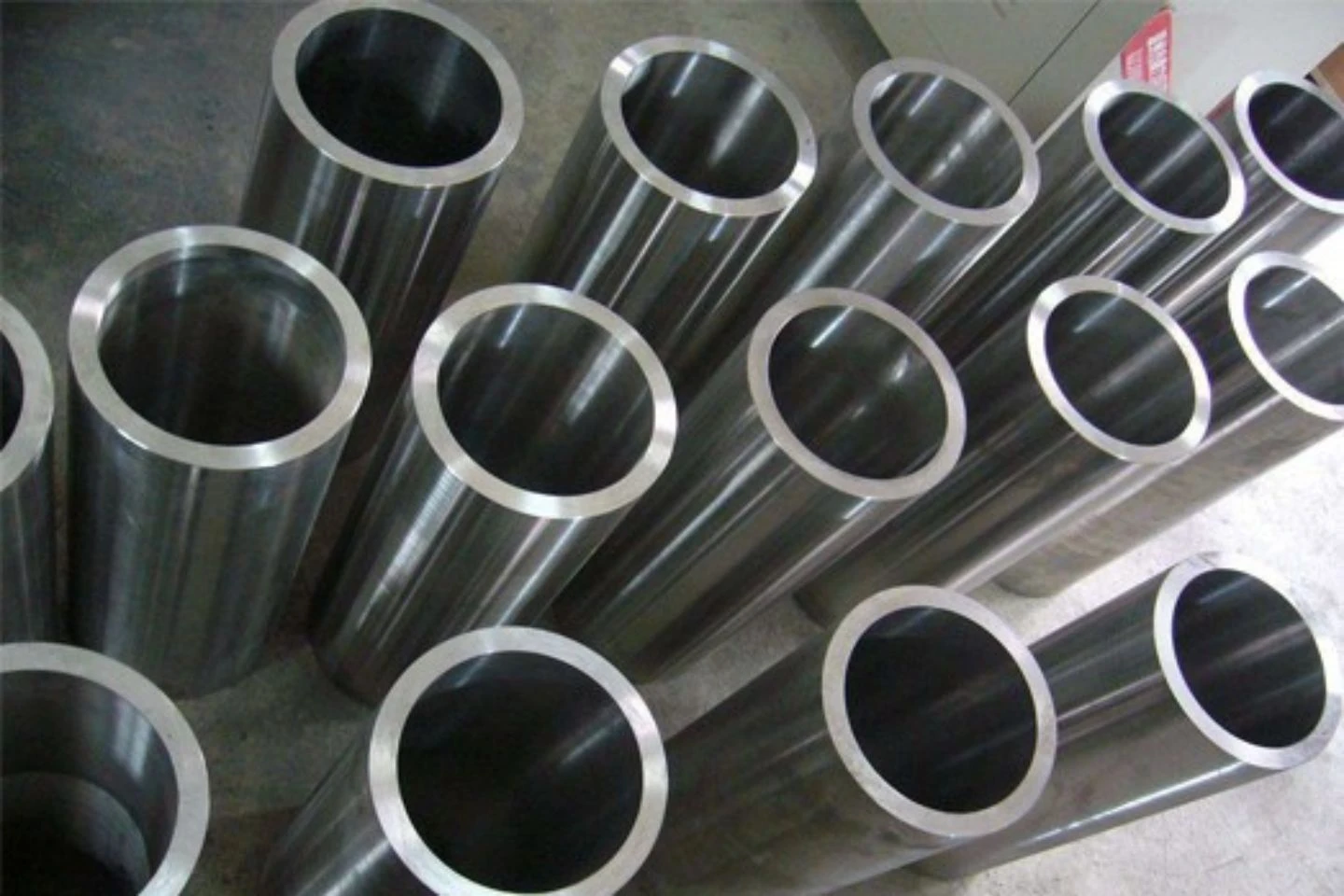

Seamless Titanium Alloy Tube
Seamless Titanium Alloy Tube

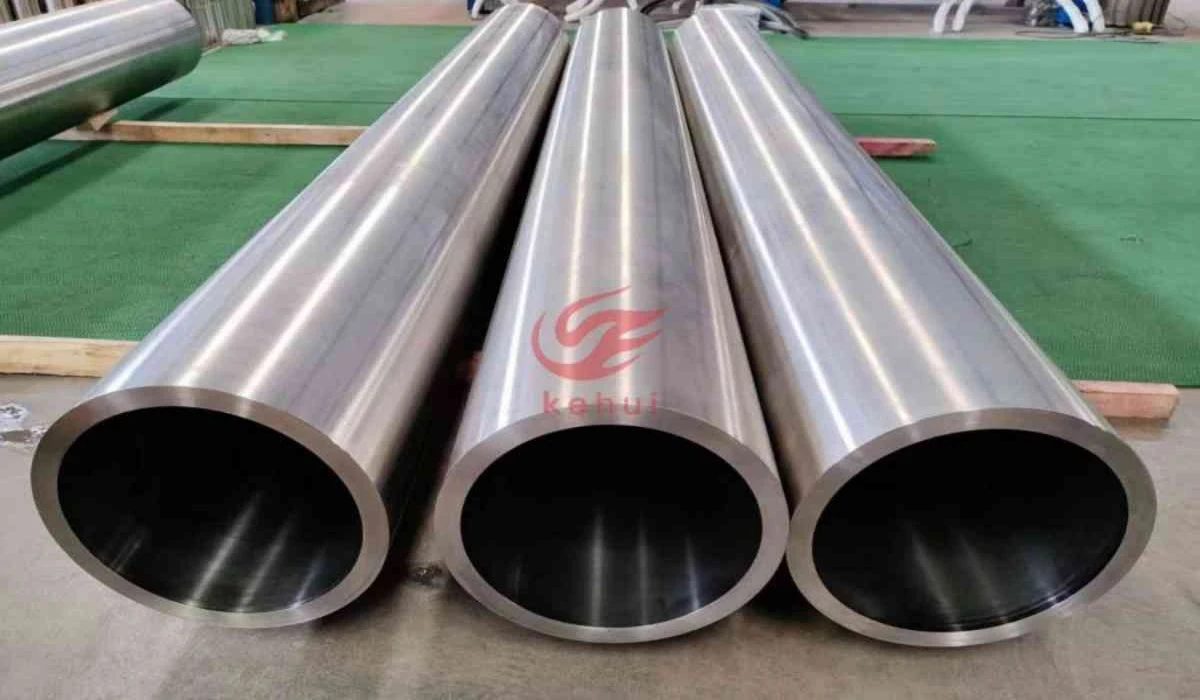

Large-caliber titanium pipe
